Surge protection

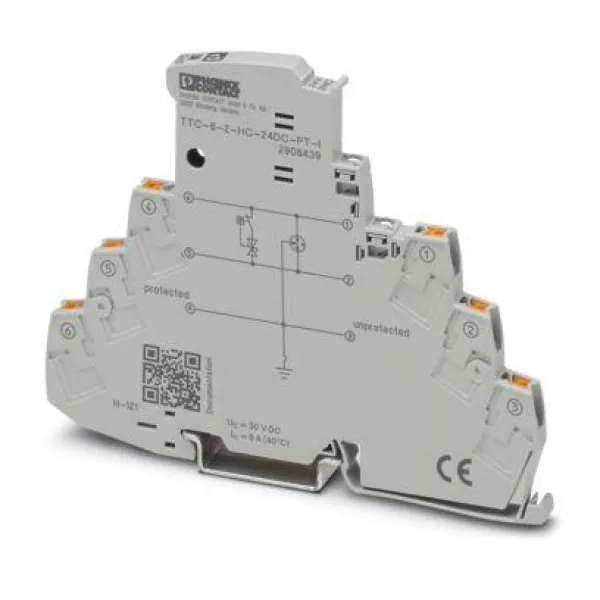

TTC-6-2-HC-24DC-PT-I

Surge protection with integrated status indicator for a 2-wire floating signal circuit with high nominal current. Can be used in safety-related circuits up to SIL 3.

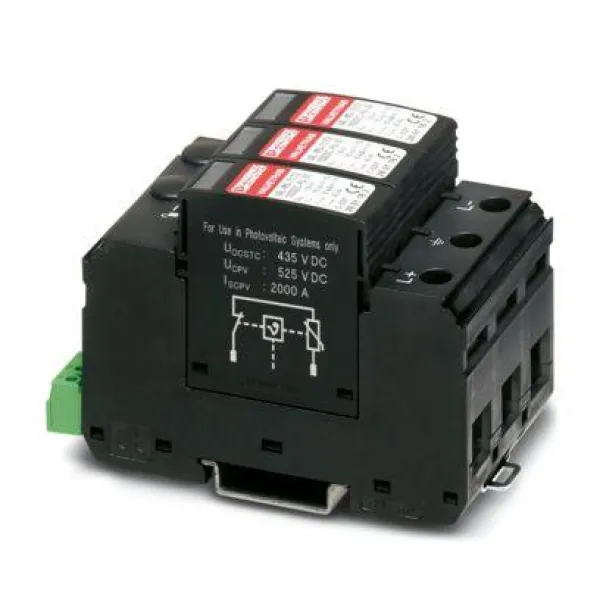

VAL-MS-T1/T2 1000DC-PV/2+V-FM

Lightning current arrester / surge protective device for 2-pos. isolated and grounded 1,000 V DC PV voltage systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message at each plug.

VAL-SEC-T2-3C-440-FM

Plug-in surge arrester, in accordance with Type 2/Class II, for 3-phase power supply networks with combined PE and N installed in one conductor (4-conductor system: L1, L2, L3, PEN), with remote indication contact.

PT 2X1-BE

Base element for protective plug PT with protective circuit for 2 conductors of signal circuits grounded on one side. Mounting on NS 35/7.5 und NS 35/15, housing width: 17.5 mm.

FLT-ISG-CA-300

Connecting cable for FLT-ISG-100-EX, length 300 mm.

FLT-SEC-H-T1-3C-440/25-FM

FLT-SEC-H-T1-1C-264/25-FM

Plug-in lightning current arrester, in accordance with Type 1/Class I, with integrated surge-proof fuse, for 1-phase power supply networks with combined PE and N installed in one conductor (L1, PEN).

VAL-SEC-T2-2C-350-FM

Plug-in surge arrester, in accordance with Type 2/Class II, for 2-phase power supply networks with combined PE and N installed in one conductor (3-conductor system: L1, L2, PEN), with remote indication contact.

D-UFB-PB

Fine surge protection in a 9-pos. D-SUB plug for PROFIBUS-DP applications with a transmission speed of up to 12 Mbps.

VAL-SEC-T2-3C-350

Plug-in surge arrester, in accordance with Type 2/Class II, for 3-phase power supply networks with combined PE and N installed in one conductor (4-conductor system: L1, L2, L3, PEN).

PLT-T3-IT-230-FM

Surge protection type 3, as device protection for termination devices in IT systems, error indication and remote indicator contact. Design: 230 V AC

IPCH-SC-1.5

Pulse measuring device sensor for the real-time recording of surge currents and transient overvoltages. Length: 1.5 m.

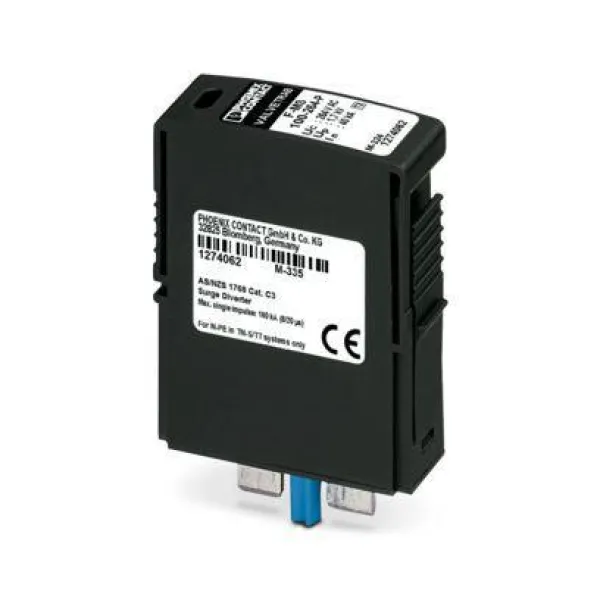

F-MS-100-264-P

Surge protection plug type 2, with N-PE total current spark gap for base element.

PT 2X1-24DC-ST

Surge protection plug for the base element, coarse and fine protection for two signal wires with common reference potential, common mode voltage coarse protection to ground. Design: 24 V DC

PLT-SEC-T3-3S-230-P

Replacement plug for type 3 device protection from the PLUGTRAB SEC T3 3S product range. 230 V nominal voltage.

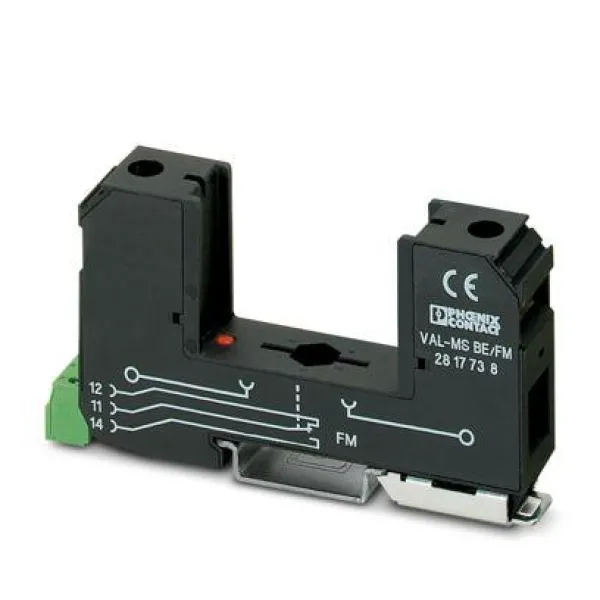

VAL-MS BE/FM

Base element for type 2 arresters of the VALVETRAB MS series of products, with remote indication contact. Design: 1-channel

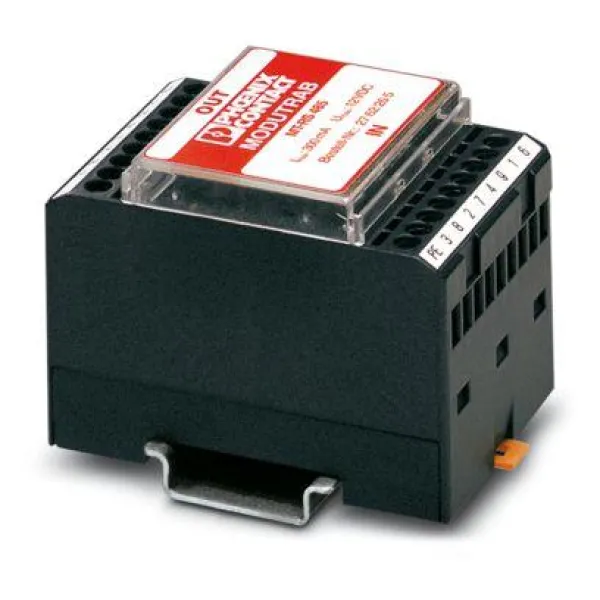

MT-RS485

VAL-SEC-T2-350-P

Replacement plug for surge arresters from the VALVETRAB SEC product range for L-N and L-PEN paths.
