System cabling for controllers

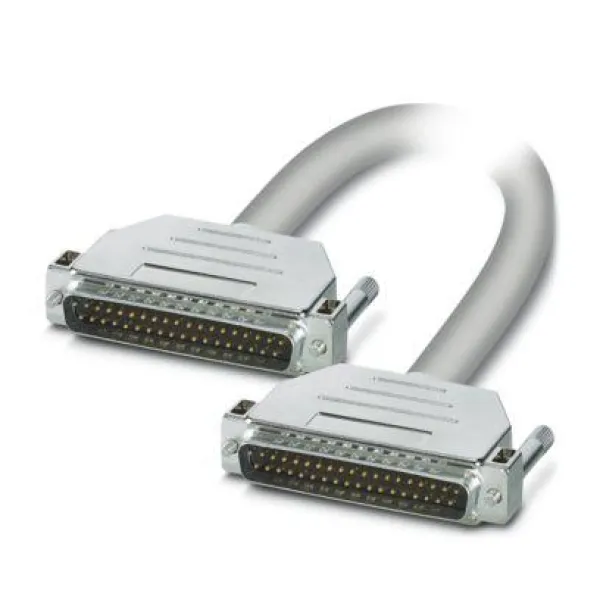

CABLE-D37SUB/S/S/HF/S/ 3,0M

Assembled, shielded, halogen-free round cable; connection 1: D-SUB pin strip (1x 37-position); connection 2: D-SUB pin strip (1x 37-position); cable length: 3 m

VIP-CAB-FLK20/FR/OE/0,14/1,5M

Round cable set; connection 1: Single wires (20-position) (The wires are marked and fitted with ferrules); connection 2: IDC/FLK socket strip (1x 20-position, 90 °-out put); cable length: 1.5 m

PLC-V8L/D15S/OUT

V8 adapter for 8 x PLC-INTERFACE (14 mm), connection 1: D-SUB pin strip 1x 15-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: positive switching

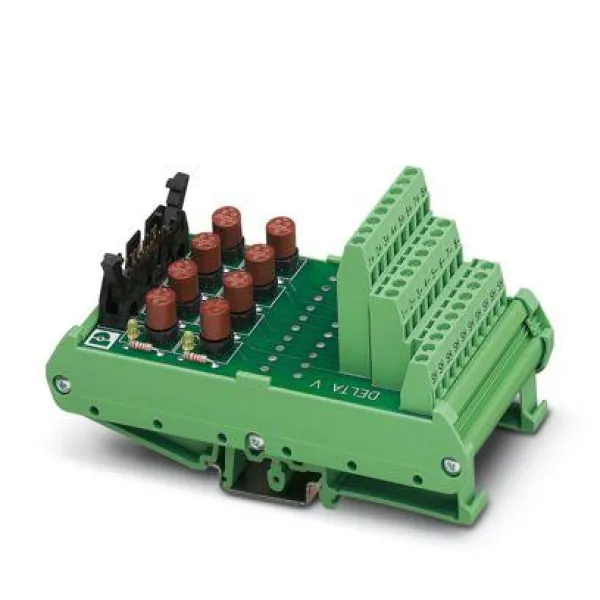

UM-DELTAV/A/SI/BFI/TP

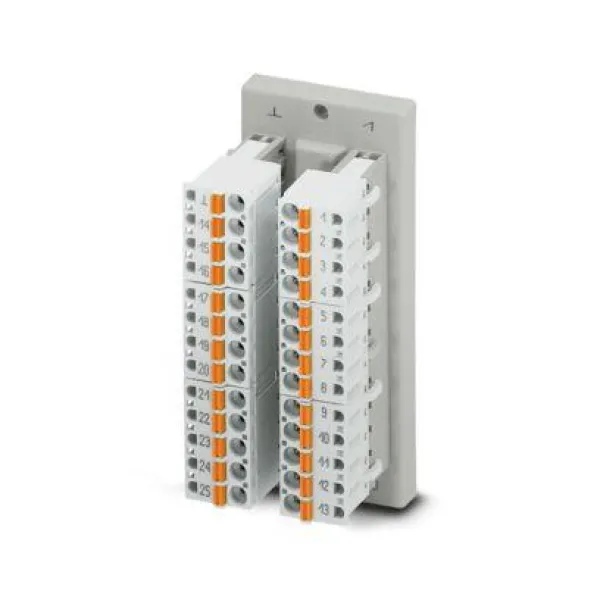

DFLK-D25 SUB/F/FKCT

The VARIOFACE feed-through module implements a 1:1 connection between plug-in push-in spring-cage connection terminal blocks and a D-SUB miniature female strip (number of positions: 25). A separate ground pick-off is available.

CABLE-FLK20/0,14/S/0,5M

Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 20-position); connection 2: IDC/FLK socket strip (1x 20-position); cable length: 0.5 m

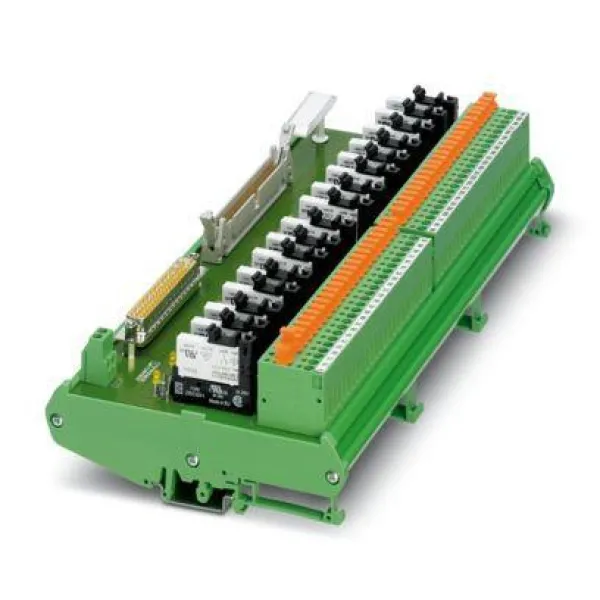

UM- D37SUB/M/HC3/16DO/MR/MT

16-channel relay module (1 changeover contact) for Honeywell C300 output modules. On the control side, the module is controlled via D-SUB 37-pos. or FLK 50-pos. A screw connection with knife disconnection is available on the field side.

CABLE-D50SUB/B/B/100/KONFEK/S

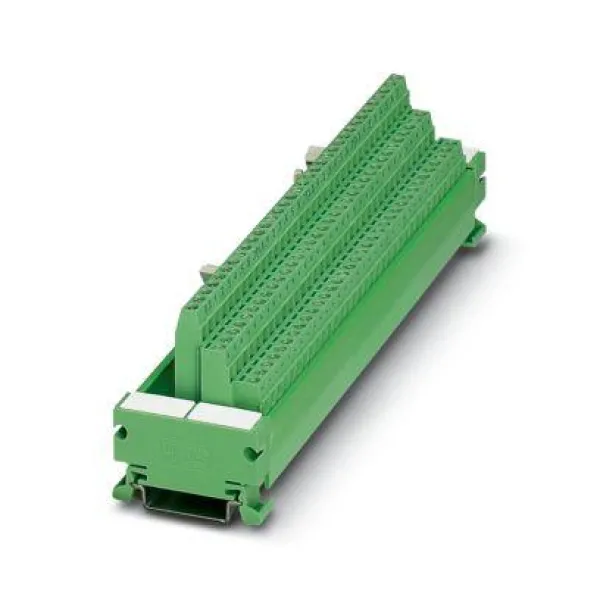

UM 45-FLK50/32IM/PLC

VARIOFACE COMPACT LINE, sensor module for the connection of 32 p-n-p sensors, for assembly on DIN rail NS 35/7.5, screw connection

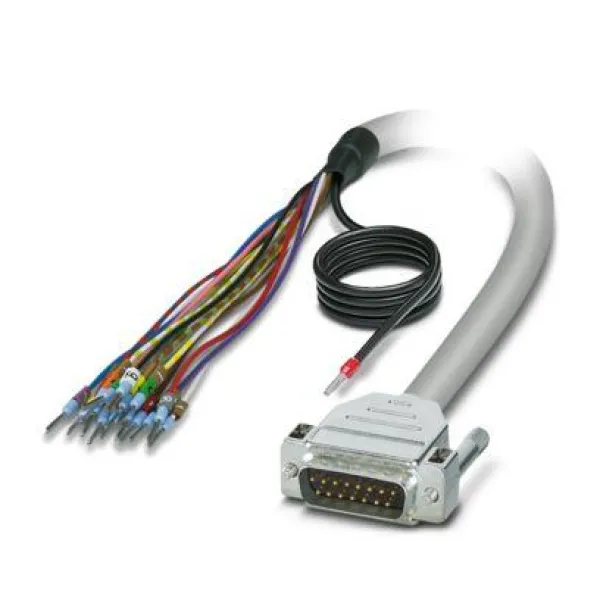

CABLE-D-15SUB/M/OE/0,25/S/2,0M

Assembled shielded round cable; connection 1: Single wires (15-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 15-position); cable length: 2 m

CABLE-FLK16/OE/0,14/ 1,5M

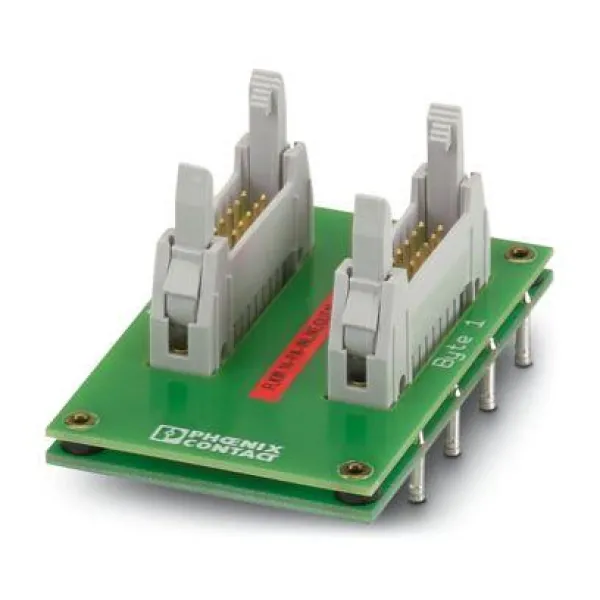

FLKM 14-PA-INLINE/OUT16

CABLE-D37SUB/S/S/100/KONFEK/S

UM-2KS40/AIO16/CS/Z/SO180

CABLE-D 9SUB/S/S/HF/S/ 3,0M

Assembled, shielded, halogen-free round cable; connection 1: D-SUB pin strip (1x 9-position); connection 2: D-SUB pin strip (1x 9-position); cable length: 3 m

VIP-PA-4X14/26/ 1,0M/1756/041

VIP VARIOFACE front adapter, with connected system cables for ControlLogix® 1756 I/O. Up to 4 x 8 channels can be connected.

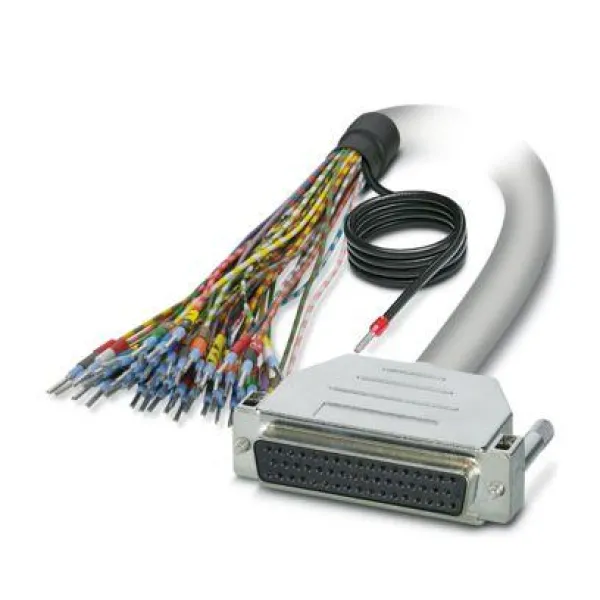

CABLE-D-50SUB/F/OE/0,25/S/3,0M

Assembled shielded round cable; connection 1: Single wires (50-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB socket strip (1x 50-position); cable length: 3 m

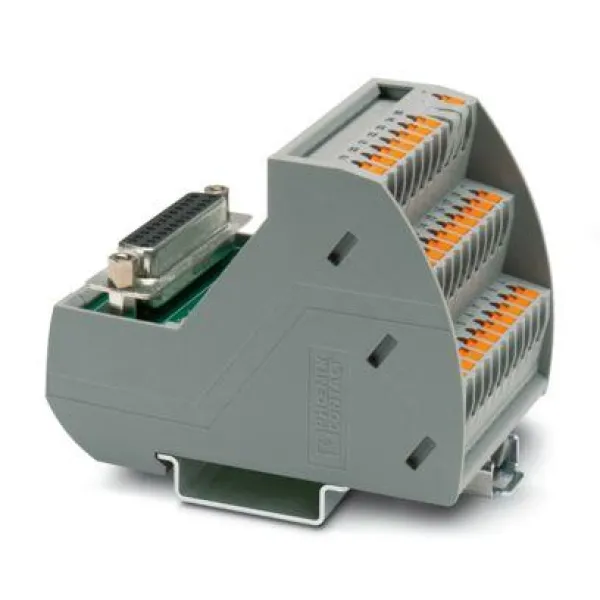

VIP-3/PT/D25SUB/F/LED

VARIOFACE module, with push-in connections and D-SUB miniature socket strip, for mounting on NS 35 rails, with LED, 25-pos.
