System cabling for controllers

FLKM-2KS40/PMT/ST/YCS

DFLK-D15 SUB/S

FLK 50/EZ-DR/ 400/KONFEK/S

FLKMIL-50/4FLK14/EZ-DR/ 500/CS

CABLE-FLK50/0,14/HF/ 3,0M

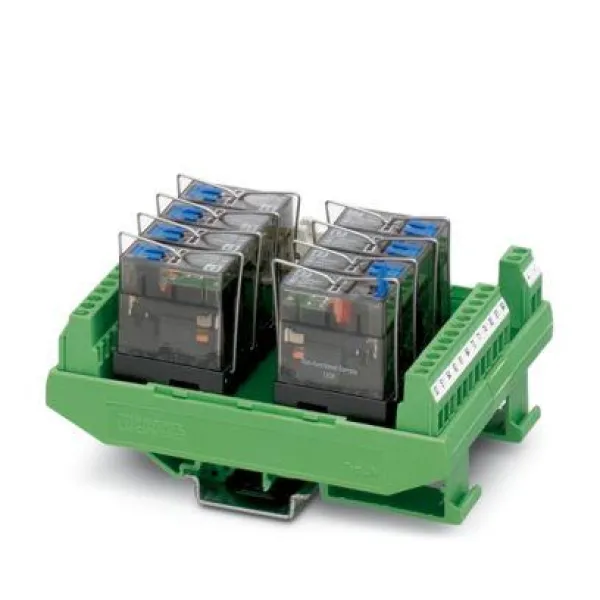

UMK- 8 RELS/KSR-G24/21/PLC

VARIOFACE output module, with plug-in bases for 8 miniature relays, 1 changeover contact each, for 24 V DC (without relays)

VIP-3/PT/HD62SUB/F

VARIOFACE module, with push-in connections and high density D-SUB socket-strip for mounting on NS 35 rails, no. of pos.: 62

FLK 26/EZ-DR/ 400/KONFEK

CABLE-FLK14/OE/0,14/ 50

FLK 50-PA/EZ-DR/KS/1500/YOC

VIP-PA-50/26/ 4,0M/1756/022

VIP VARIOFACE front adapter, with connected system cables for ControlLogix® 1756 I/O. Up to 1 x 16 channels can be connected.

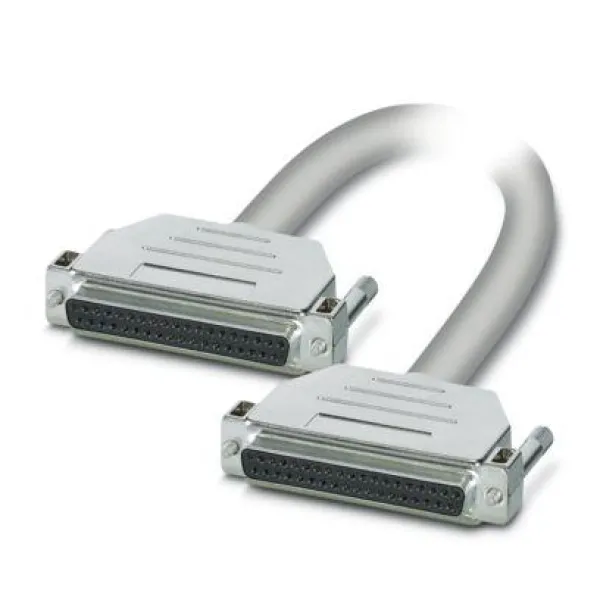

CABLE-D37SUB/B/B/HF/S/ 4,0M

Assembled, shielded, halogen-free round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 4 m

FLK 50/EZ-DR/1000/KONFEK/S

FLK-MIL50/EZ-DR/KS/1000/YCS

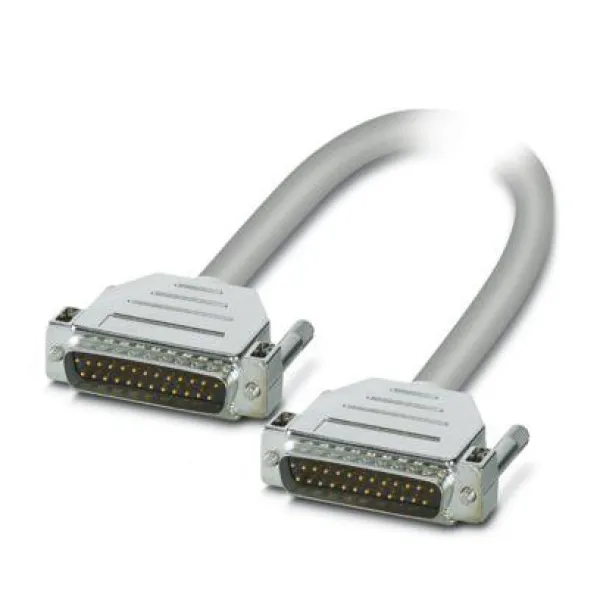

CABLE-D25SUB/S/S/300/KONFEK/S

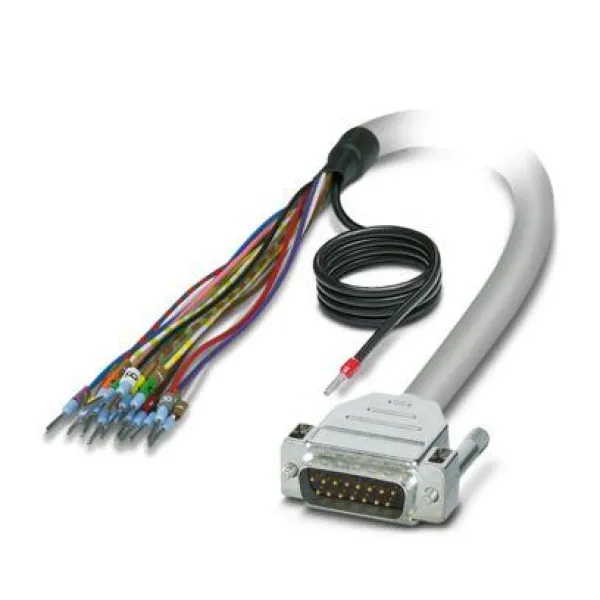

CABLE-D-15SUB/M/OE/0,25/S/1,5M

Assembled shielded round cable; connection 1: Single wires (15-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 15-position); cable length: 1.5 m

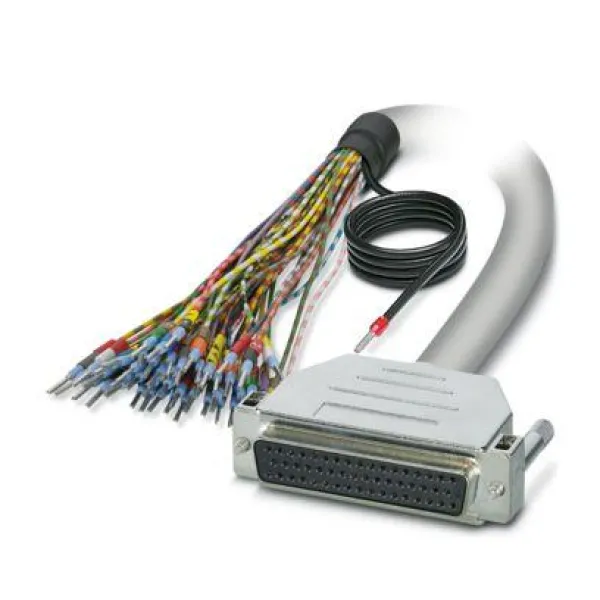

CABLE-D-50SUB/F/OE/0,25/S/1,0M

Assembled shielded round cable; connection 1: Single wires (50-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB socket strip (1x 50-position); cable length: 1 m

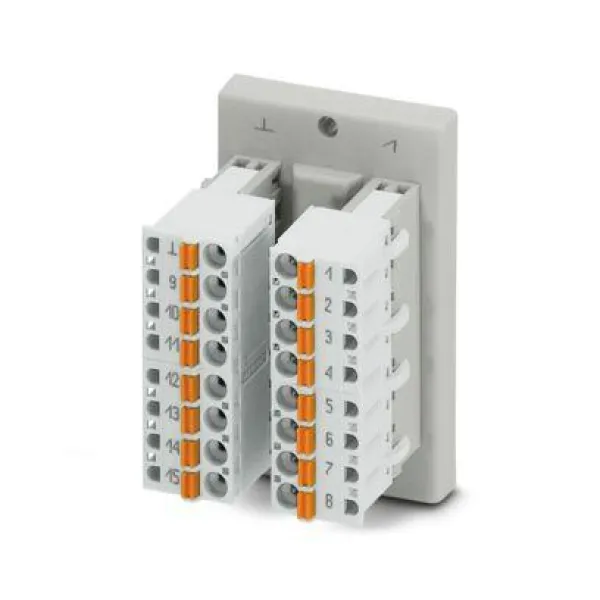

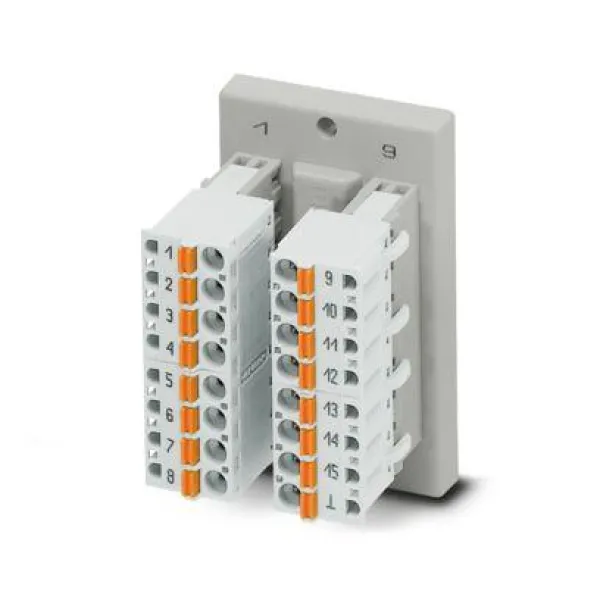

DFLK-D15 SUB/M/FKCT

The VARIOFACE feed-through module implements a 1:1 connection between plug-in push-in spring-cage connection terminal blocks and a D-SUB miniature pin strip (number of positions: 15). A separate ground pick-off is available.
