PLCs (controllers) and I/Os

AXL F BK PN TPS

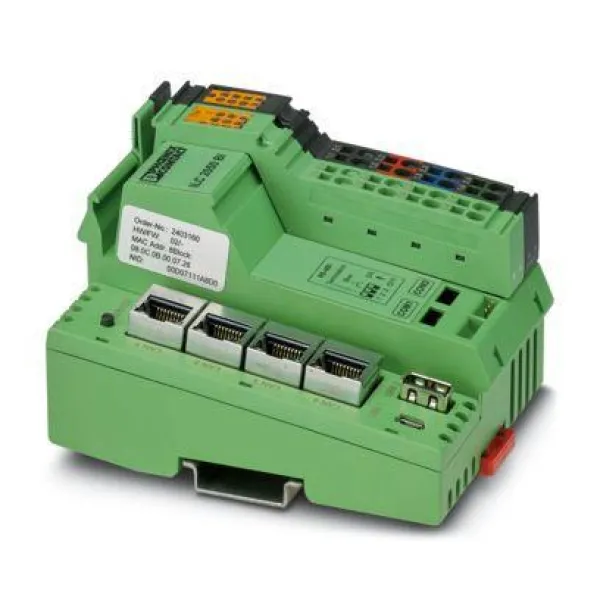

ILC 2050 BI

Modular Inline controller for automation applications in the fields of building technology, infrastructure, and energy technology. Equipped with two logically separated IP address interfaces each with 2 integrated Fast Ethernet ports. Configurable assignment of the Ethernet ports for the use of the spanning-tree protocol, daisy chain and redundant ring structures for maximum availability. Four LAN, two USB, and two RS-485 interfaces are integrated. The data point connections can be extended with up to 63 Inline I/O modules: digital and analog, function terminals for DALI, pulse counting, MBUS or serial interfaces.

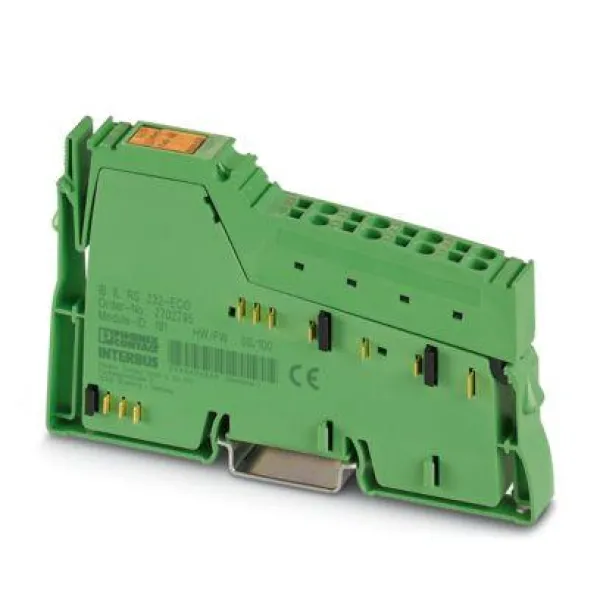

IB IL RS 232-ECO

AXL F RS UNI 1H

AXL SE IOL4

Axioline Smart Elements, IO-Link master, IO-Link ports Class A: 4, connection method: Push-in connection, connection technology: 3-conductor, degree of protection: IP20

AXL SE AO4 U 0-10

Axioline Smart Elements, Analog output module, Analog outputs: 4, 0 V ... 10 V, connection technology: 2-conductor, degree of protection: IP20

AXL SE AO4 I 4-20

Axioline Smart Elements, Analog output module, Analog outputs: 4, 4 mA ... 20 mA, connection technology: 2-conductor, degree of protection: IP20

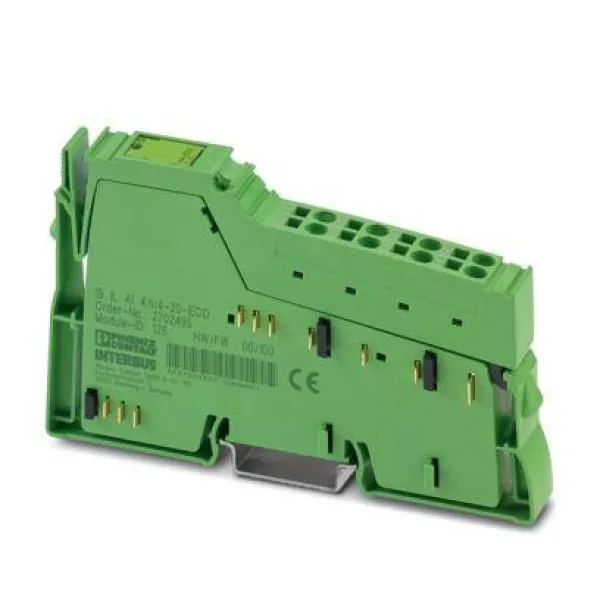

IB IL AI 4/I/4-20-ECO

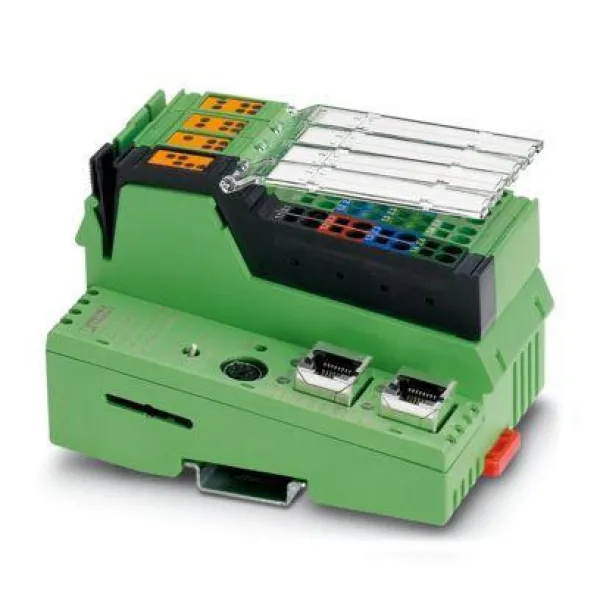

ILC 171 ETH 2TX

The Inline controller offers the option of communicating via PROFINET and Modbus/TCP. Programming is carried out using PC Worx Express or PC Worx (IEC 61131-3).

AXL SE RS485

Axioline Smart Elements, Communication module, interface RS-485: 1, Process data width: 20 bytes, Transparent protocol, degree of protection: IP20

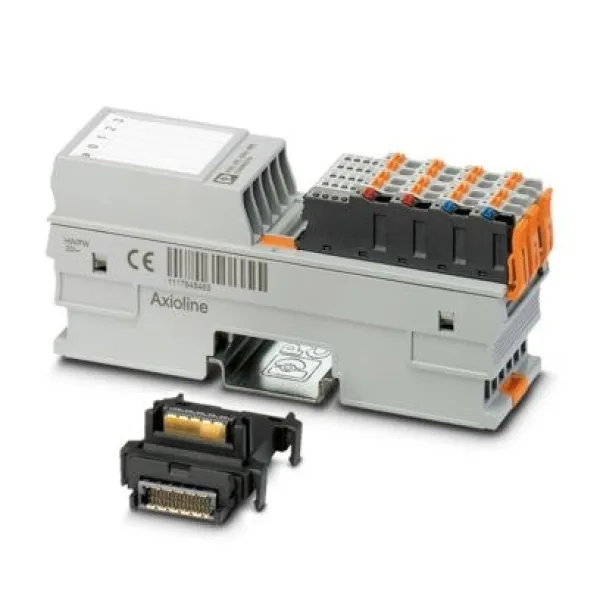

AXL F BK ETH

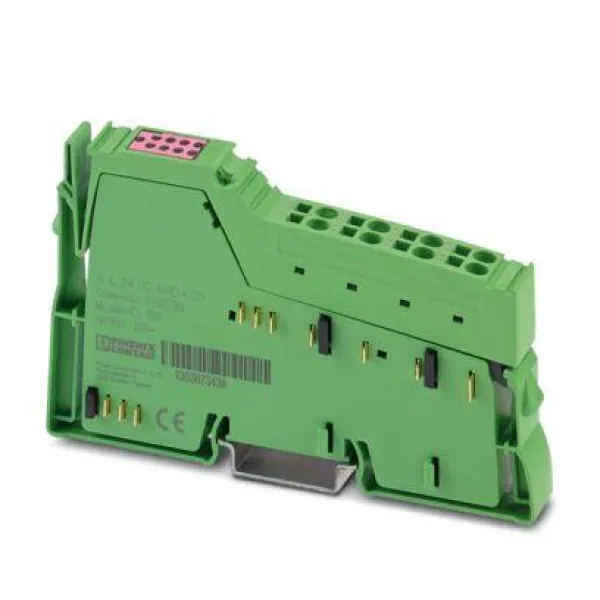

IB IL 24 DO 8/HD-ECO

AXL F BK EIP

Axioline F, Bus coupler, EtherNet/IP™, RJ45 jack, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connector

SD FLASH 2GB PLCNEXT MEMORY

Program and configuration memory for storing the application programs and other files in the file system of the PLC, plug-in, 2 GB.

PLCNEXT TECHNOLOGY STARTERKIT

PLCnext Technology Starterkit including PLCnext Control AXC F 2152, AXL Smart Elements DI16/DO16/AI4 I/O modules, slide potentiometer, push buttons, power supply unit, and patch cables.

AXL F BP SE6

Axioline F, Backplane, 6 slots for Axioline Smart Elements, transmission speed in the local bus: 100 Mbps, degree of protection: IP20

AXL F BP SE4

Axioline F, Backplane, 4 slots for Axioline Smart Elements, transmission speed in the local bus: 100 Mbps, degree of protection: IP20

AXL SE SC-A

Axioline Smart Elements, Slot cover, Diagnostic function, degree of protection: IP20
