PLCs (controllers) and I/Os

AXL SE RTD4 PT100

Axioline Smart Elements, Temperature recording module, Analog RTD inputs: 4 (Pt 100), connection technology: 3-conductor, degree of protection: IP20

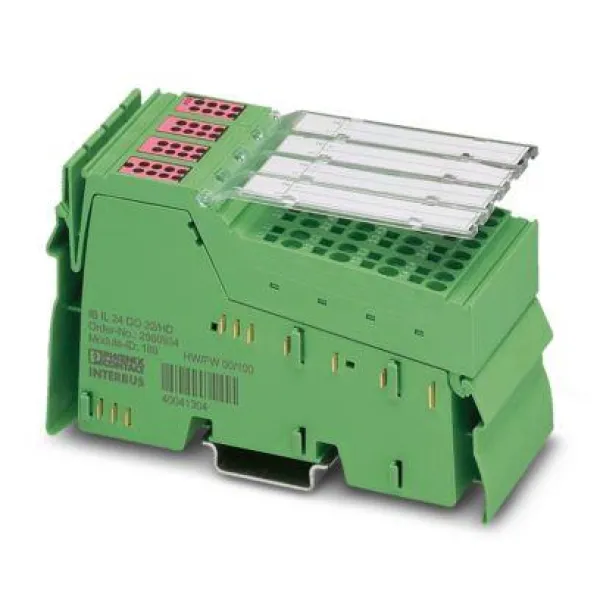

IB IL 24 DO 32/HD-PAC

Inline, Digital output terminal, Digital outputs: 32, 24 V DC, 500 mA, connection technology: 1-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields

AXL SE PD8/8 24V/GND

Axioline Smart Elements, Potential distribution module, 24 V DC, GND, degree of protection: IP20

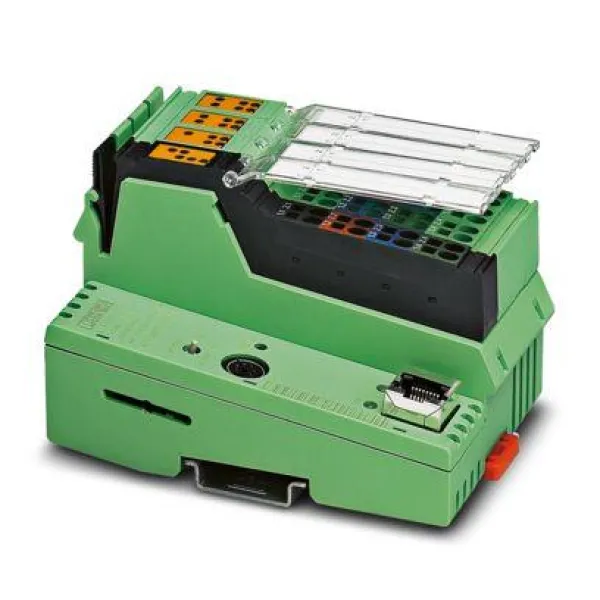

ILC 131 ETH

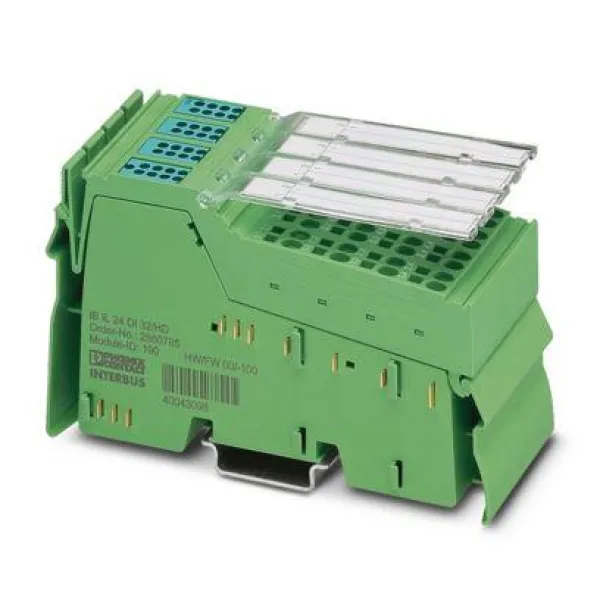

IB IL 24 DI 32/HD-PAC

Inline, Digital input terminal, Digital inputs: 32, 24 V DC, connection technology: 1-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields

AXL F PWM2 1H

Axioline F, Function module, Pulse width modulation, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors

AXL SE AI4 U 0-10

Axioline Smart Elements, Analog input module, Analog inputs: 4, 0 V ... 10 V, connection technology: 2-conductor, degree of protection: IP20

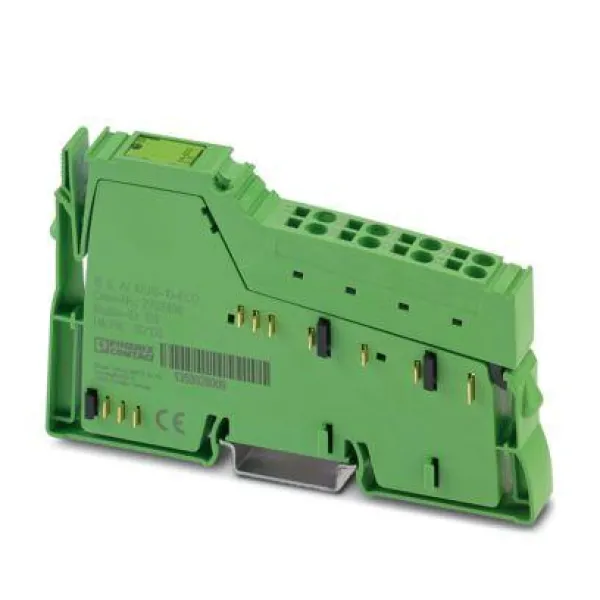

IB IL AI 4/U/0-10-ECO

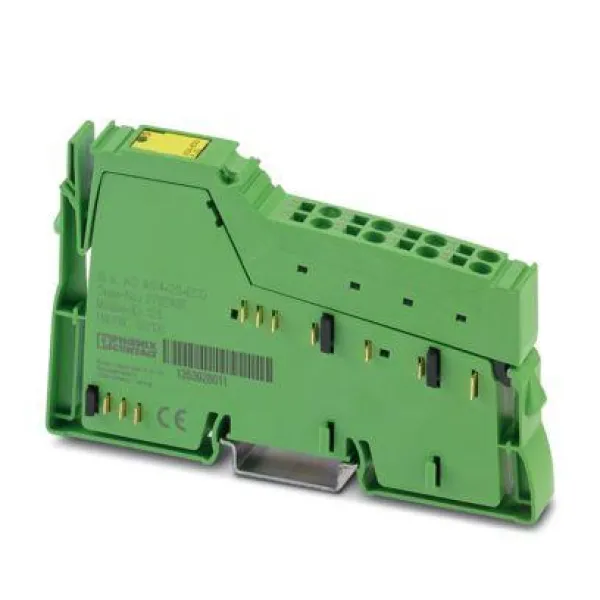

IB IL AO 4/I/4-20-ECO

AXC F 3152

Controller (SPS), PLCnext Control; Programming: High-level language and IEC 61131-3; Operating system: Yocto/Linux® (real-time); Programming tool: PLCnext Engineer, Eclipse®, Visual Studio®, MATLAB®/ Simulink®; IoT connection: PROFICLOUD and every cloud via cloud connectors; Development process certified in accordance with IEC 62443-4-1, Product certified in accordance with IEC 62443-4-2 (Certification conditions see user documentation); Processor: Intel® Atom® x5-E3930, 2x 1.3 GHz.

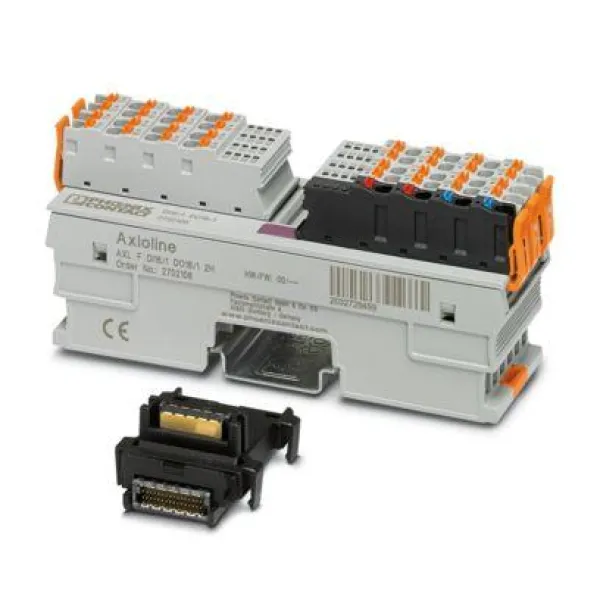

AXL F DI16/1 DO16/1 2H

IB IL AO 4/U/0-10-ECO

AXL SE AI4 I 0-20

Axioline Smart Elements, Analog input module, Analog inputs: 4, 0 mA ... 20 mA, connection technology: 2-conductor, degree of protection: IP20

IB IL RTD 4/NTC-ECO

Inline, Temperature measurement terminal, Analog RTD inputs: 4 (NTC, linear resistors), connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector

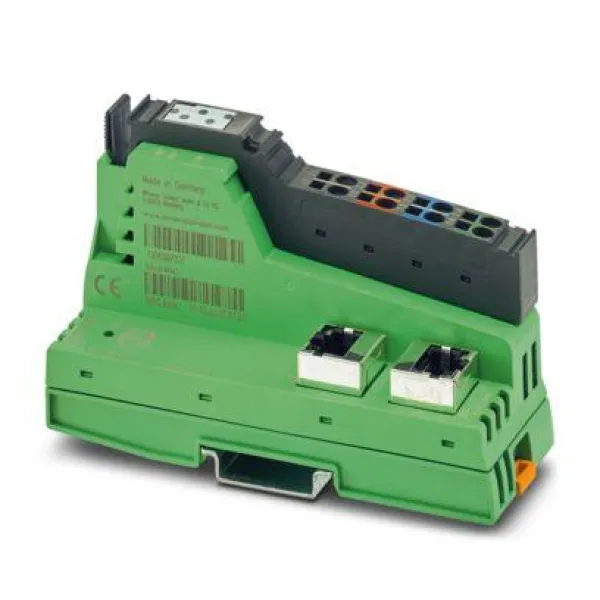

IL ETH BK-PAC

IB IL 24 DI 8/HD-ECO

SD FLASH 8GB PLCNEXT MEMORY

Program and configuration memory for storing the application programs and other files in the file system of the PLC, plug-in, 8 GB.

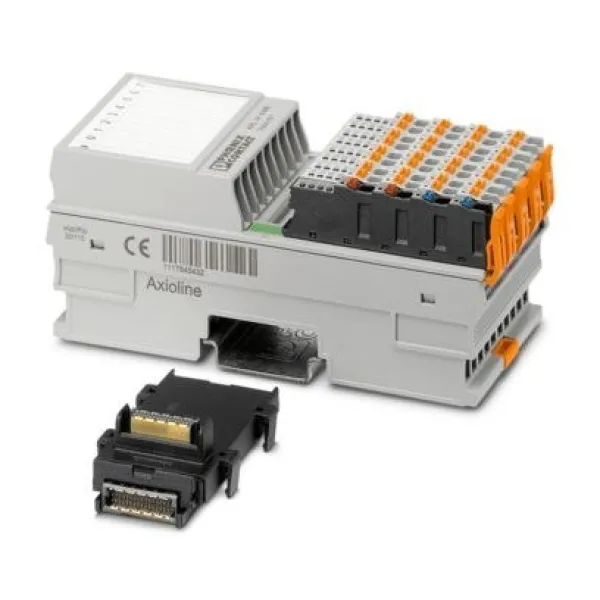

AXL F AI8 1F

Axioline F, Analog input module, Analog inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors
