Industrial communication – From fieldbus through to Industrial Ethernet

FL SWITCH EP7400-MCP-W-1TB

Extension module, co-processor with E3940 Intel Atom® with 8 GB of RAM, Windows® 11 Pro operating system

FL SWITCH EP7400 -M8POE

Extension module, provides eight PoE RJ45 ports at 10/100/1000 Mbps

MC 1000T-MM SC

FO converter with SC duplex fiber optic connection (1310 nm) for converting 100Base-TX to multimode fiber optics. Auto MDI(X) function, DIN rail mountable with wide operating temperature range.

FL SWITCH EP7428R-L3F1P

Ethernet gigabit modular PoE switch with slots for twenty-four 10/100/1000 Mbps copper or 100/1000 Mbps SFP ports and four 1000/10,000 Mbps SFP ports using hot-swappable rear modules.

FL SWITCH EP7400-MCP-L-1TB

Extension module, co-processor with E3940 Intel Atom® with 8 GB of RAM, Ubuntu® Desktop 22.04.03 LTS operating system

FL SWITCH EP7400 -M8SERRJ

Extension module, provides eight serial RJ45 ports, RS-232/422/485

FL WLAN 1120

WLAN client, soft access point, Wi-Fi 6, with internal antennas (MIMO) for single-hole mounting, IP66/68, -30°C ... +60°C, WLAN 802.11 a, b, g, n, ac, ax,frequency: 2.4 GHz, 5 GHz, connection data: 9 V DC ... 32 V DC, RJ45: for LAN, http/https, CLI, REST API

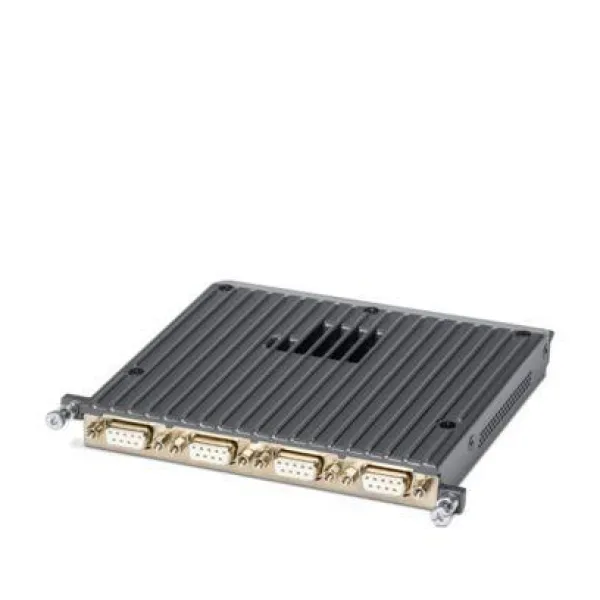

FL SWITCH EP7400 -M4SERDB

Extension module, provides four serial D-SUB 9 ports, RS-232/422/485

MC 1000-MM ST

Fiber optic converter with ST (B-FOC) fiber optic connection (1310 nm) for converting 100Base-TX to multimode fiber optics. Auto MDI(X) function and DIN rail mountable.

FL SWITCH 1108 REG

MC 1000T-MM WDM A

MC 1000T-SM20 SC

FO converter with SC duplex fiber optic connection (1310 nm) for converting 100Base-TX to singlemode fiber optics. Auto MDI(X) function, DIN rail mountable with wide operating temperature range.

MC 1000-SM20 ST

Fiber optic converter with ST (B-FOC) fiber optic connection (1310 nm) for converting 100Base-TX to singlemode fiber optics. Auto MDI(X) function and DIN rail mountable.

MC 1000T-MM LC

FL SWITCH 1108T

MC 1000T-SM40 SC

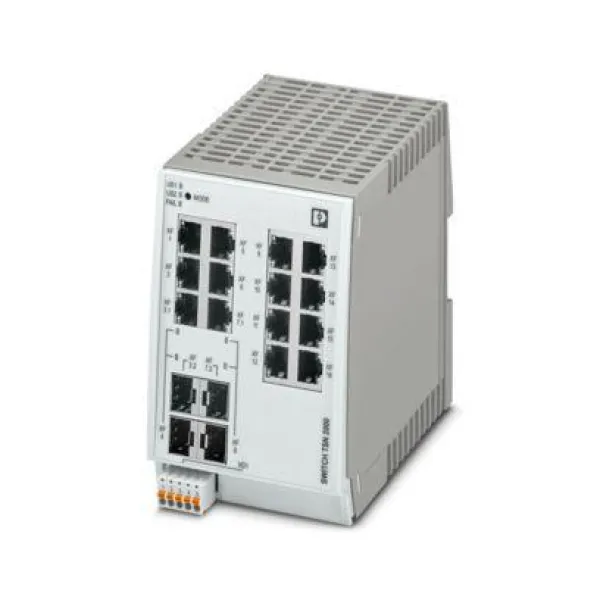

FL SWITCH TSN 2312-2GC-2SFP

Managed TSN Switch 2000 series, 12 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, 2 Combo ports, degree of protection: IP20, Ambient temperature (operation): -40 °C ... 60 °C, Supply voltage range: 12 V DC ... 57 V DC, PROFINET Conformance Class B, Development process certified in accordance with IEC 62443-4-1, Compatible with IEC 62443-4-2

FL SWITCH 1100-8POE

PoE++ Ethernet switch conforms to IEEE 802.3af/at/bt, includes eight PoE RJ45 ports with 10/100/1000 Mbps on all ports, automatic data transmission speed detection, autocrossing function, and QoS. 90 W per port with a 240 W power budget
