Industrial communication – From fieldbus through to Industrial Ethernet

FL DIN RA

The FL DIN RA is installed in a standard, 19-inch rack (EIA-310-D, IEC 60297-3-100) to allow DIN rail mounted equipment to be rack mounted.

PSI-MOS-RS485W2/FO 850 E

FO converter with integrated optical diagnostics, alarm contact, for RS-485 2-wire bus systems (SUCONET K, Modbus ...) up to 500 kbps, NRZ coding, terminal device with one FO interface (BFOC), 850 nm, for PCF/fiberglass cable (multimode)

TC ROUTER 5004T-5G EU

Industrial 5G router (5G NR, release 16, SA/NSA), can now also be used worldwide, fallback to 4G (LTE Advanced Pro) and 3G (HSPA+), 4-port switch, firewall, NAT, IPsec and OpenVPN, 4 x SMA-F antenna sockets, SMS and email transmission, 4 DI, 2 DO

GW EIP/MODBUS 2E/2DB9

The GW EIP/MODBUS... enables two-way communication between EtherNet/IP™ and Modbus protocols. Includes two RJ45 ports and two D-SUB 9 ports.

FL SWITCH 2308

Managed Switch 2000 series, 8 RJ45 ports 10/100/1000 Mbps, degree of protection: IP20, Ambient temperature (operation): -40 °C ... 70 °C, Supply voltage range: 12 V DC ... 57 V DC, PROFINET Conformance Class B, Extended temperature range, Development process certified in accordance with IEC 62443-4-1, Product certified in accordance with IEC 62443-4-2

RAD-PT100-4-IFS

Radioline - I/O extension module, 4 Pt 100 inputs (-50°C ... +250°C / -58 °F ... 482 °F)

FL SWITCH 1004NT-SFX

Narrow Ethernet switch, wide temperature range, four RJ45 ports with 10/100 Mbps on all ports, one SFP port with 100 Mbps, automatic data transmission speed detection, autocrossing function, and QoS

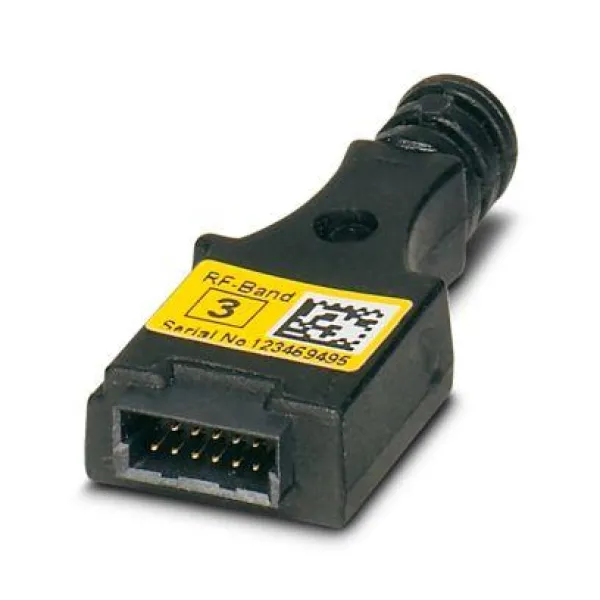

RAD-CONF-RF3

Radioline - configuration stick for easy and safe network addressing for the 2.4 GHz wireless module (RAD-2400-...), unique network ID, RF band 3

GW PL DP/MODBUS

Modbus/RTU to PROFIBUS DP protocol converter

FL SFP SX

Gigabit SFP module for transmission up to 1 km with a wavelength of 850 nm.

ANT-OMNI-868-01

FL SWITCH 2207-FX SM

Managed Switch 2000 series, 7 RJ45 ports 10/100 Mbps, 1 SC single mode 100 Mbps, degree of protection: IP20, Ambient temperature (operation): -40 °C ... 70 °C, Supply voltage range: 9 V DC ... 57 V DC, PROFINET Conformance Class B, Extended temperature range, Development process certified in accordance with IEC 62443-4-1, Product certified in accordance with IEC 62443-4-2

PSI-MOS-RS232/FO 850 E

FO converter with integrated optical diagnostics, alarm contact, for RS-232 interfaces up to 115.2 kbps, terminal device with one FO interface (BFOC), 850 nm, for PCF/fiberglass cable (multimode)

FL SFP LX

Gigabit SFP module for transmission up to 30 km with a wavelength of 1310 nm.

PSI-MOS-PROFIB/FO 850 T

FO converter with integrated optical diagnostics, alarm contact, for PROFIBUS up to 12 Mbps, T-coupler with two FO interfaces (BFOC), 850 nm, for PCF/fiberglass cable (multimode)

PSM-ME-RS232/RS232-P

FL SWITCH 1924

Ethernet switch, 24 Ethernet ports on the front in RJ45 format, automatic detection of 10, 100 or 1000 Mbps data transmission rate, coupling of network segments with different transmission speeds, auto crossing function, installs in 19-in. (482 mm) rack

PSI-MOS-RS485W2/FO 850 T

FO converter with integrated optical diagnostics, alarm contact, for RS-485 2-wire bus systems (SUCONET K, Modbus ...) up to 500 kbps, NRZ coding, T-coupler with two FO interfaces (BFOC), 850 nm, for PCF/fiberglass cable (multimode)
