I/O signal marshalling

TC-C-MAX2-SC-31322122

Cable set for signal transmission on the Termination Carrier for two-channel modules or modules with double output from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 as well as 2.1 and 2.2 (signal transmission) to the signal PCB.

TC-C-MAX2-SC-32220000

Cable set for signal transmission and power supply on the Termination Carrier for signal conditioners from the MACX Analog Ex series. Connection of terminal points 3.2 and 2.2 (signal transmission for active input cards) to the signal PCB.

TC-C-PSR3-SC-A100V+A20000

Cable set for signal transmission and power supply on the Termination Carrier for coupling relays from the PSR-ETP series. Connection of terminal points A1 and A2 (signal transmission) as well as V+ (power supply) to the signal PCB. Suitable for PSR-SCP-24DC/ETP/1X1 (Item No. 2986711).

TC-C-MINI-AI-05060708

Cable set for signal transmission and power supply on the Termination Carrier for modules from the MINI Analog and PSR mini series. Connection of terminal points 5 and 6 (signal transmission) as well as 7 and 8 (power supply) to the signal PCB.

TC-C-MAX2-SC-31321112

Cable set for signal transmission and power supply on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) as well as 1.1 and 1.2 (power supply) to the signal PCB via a 4-pos. PTSM connector.

TC-C-MAX2-SC-31320000

Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.

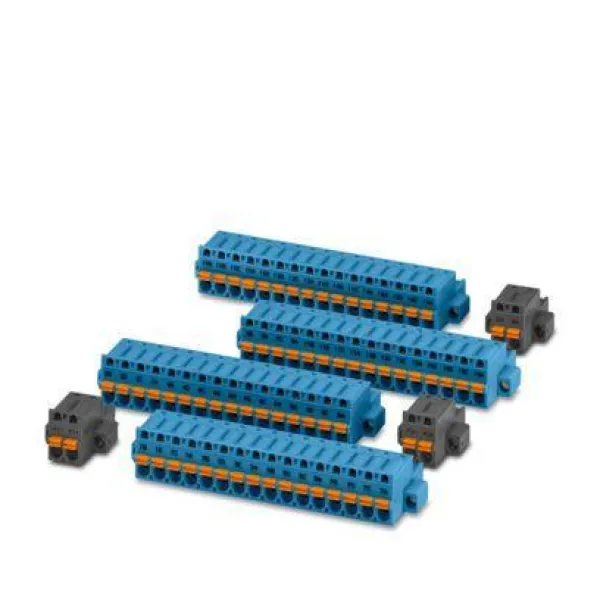

PLUGKIT-BU/FKC/16CH-1-16

Connector set for standard applications for use with BASE-MSTB/D37M/16CH/EX VIP I/O marshalling base element with Push-in connection.

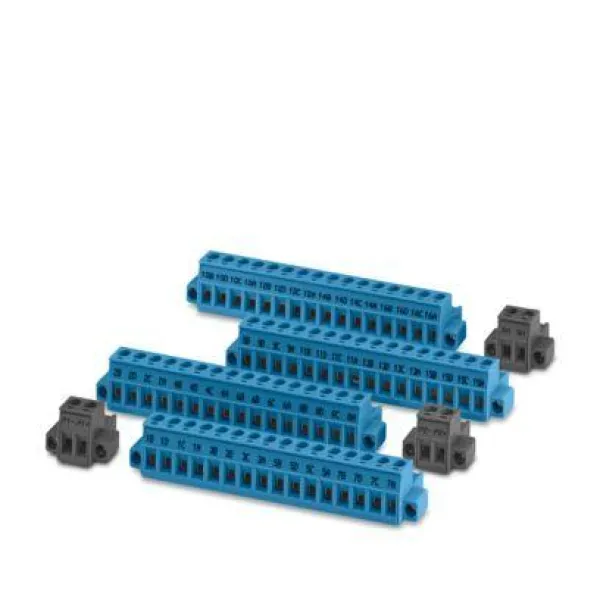

PLUGKIT-BU/MSTB/16CH-1-16

Connector set for standard applications for use with BASE-MSTB/D37M/16CH/EX VIP I/O marshalling base element with screw connection.

BASE/U/RAIL DIVIDER

VIP I/O marshalling partition plate for safe isolation between non-Ex i and Ex i assembled base modules, for universal use in UM-PRO ...MSTB... designThe partition plate is mounted directly on the DIN rail at the end of the base module.

FUSE/TE5/2.5A/T-10PCS

Fuse set, number: 10 Pcs., nominal current: 2.5 A, tripping characteristic: slow-blow (T)

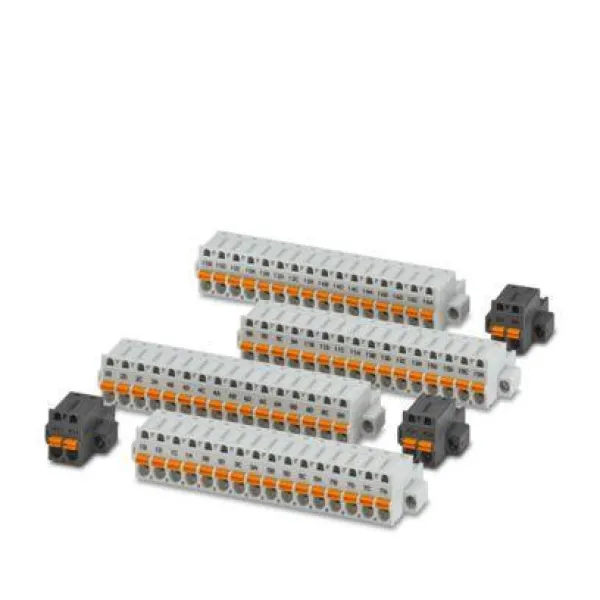

PLUGKIT-GY/FKC/16CH-1-16

Connector set for standard applications for use with BASE-MSTB/D37M/16CH/EX VIP I/O marshalling base element with Push-in connection.

IOA FEED-THRU-DO/NI/EX

Non-incendive, Ex ic impeding devices for VIP I/O marshalling base elements. For limiting current (60 mA or 80 mA) and voltage (26.4 V DC) on digital outputs. For example, to control solenoid valves in the Ex area (zone 2, CID2).

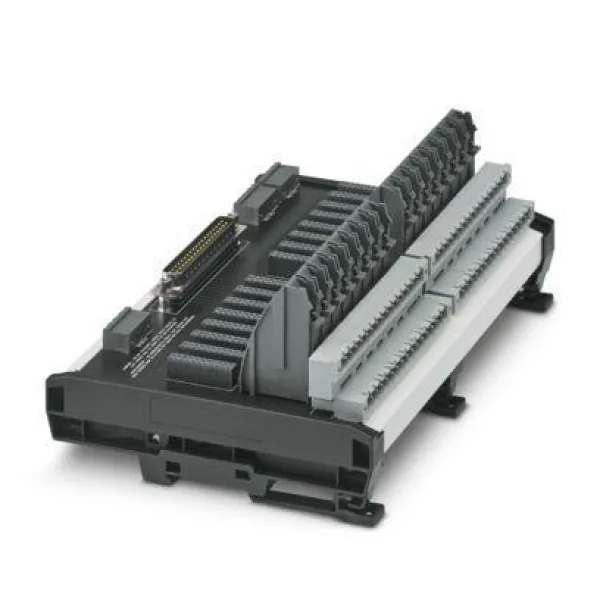

BASE-MSTB/D37M/16CH/EX

16-channel VIP I/O marshalling base element with 37-pos. D-SUB connector for universal use. Plug-in field and supply terminals available as accessories. Either with screw or Push-in connection technology.

IOA LM-DI/R/RUSIO/EX

Cable monitoring module for VIP I/O marshalling base elements. Enables cable fault monitoring when using standard switching contacts in safety applications. Both wire breaks and short circuits can be detected.

IOA PR-DAI/DAO/F/DS/2A/EX

Fuse module for VIP I/O marshalling base elements with replaceable 2 A fuse in the field device supply path. Integrated test points and a disconnect knife allow uninterrupted signal measurement.

IOA REL 120V DI/1.0A/EX

Relay module for VIP I/O-Marshalling base elements. For the electrically isolated coupling of 120 V AC field devices to digital inputs. Integrated fuse and fuse failure indication.

FUSE/TE5/1A/T-10PCS

Fuse set, number: 10 Pcs., nominal current: 1 A, tripping characteristic: slow-blow (T)

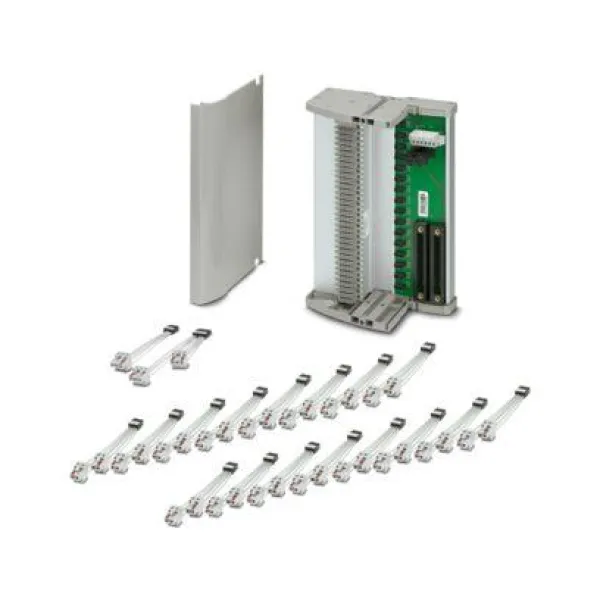

TC-2KS50-DI32-2EX-PR-CS
