Terminal blocks with system

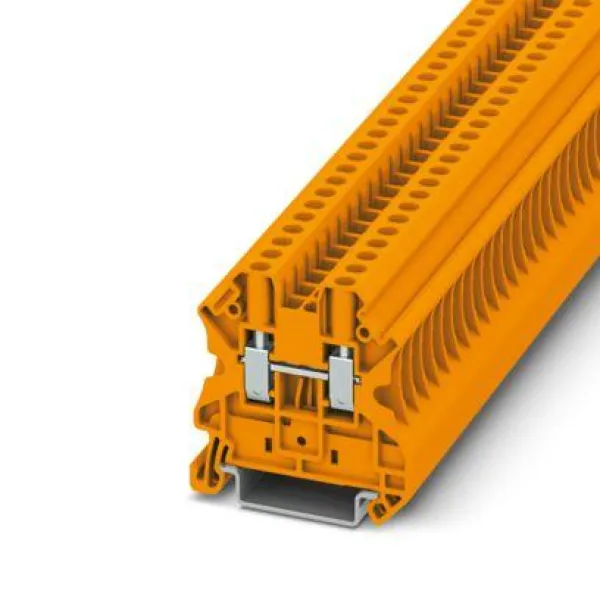

UT 4 OG

PAI-4-FIX-5/6 GN

4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch

FBS 5-5 GY

Plug-in bridge, pitch: 5.2 mm, number of positions: 5, color: gray

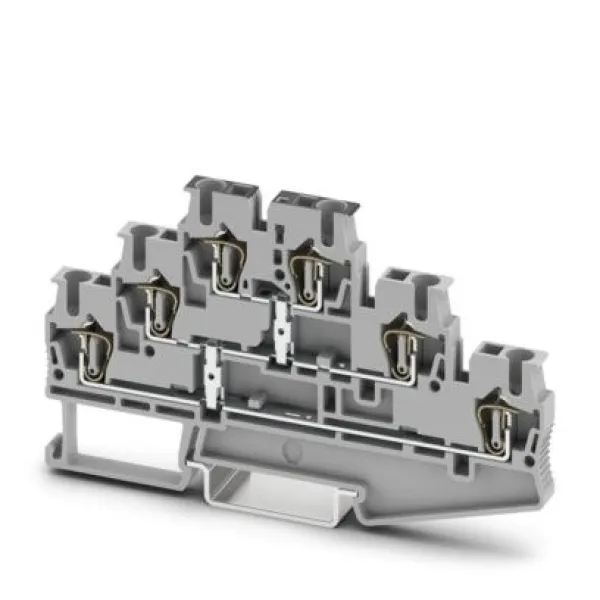

ST 2,5-3PV

Multi-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 20 A, number of connections: 6, connection method: Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

PTV 4-TWIN

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

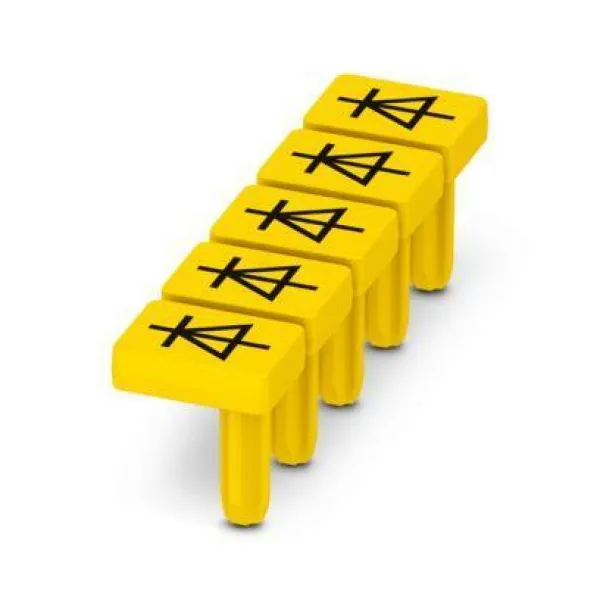

WS-DIO PT 2,5

Warning label, yellow/black, labeled: Diode, mounting type: plug in, for terminal block width: 5.2 mm

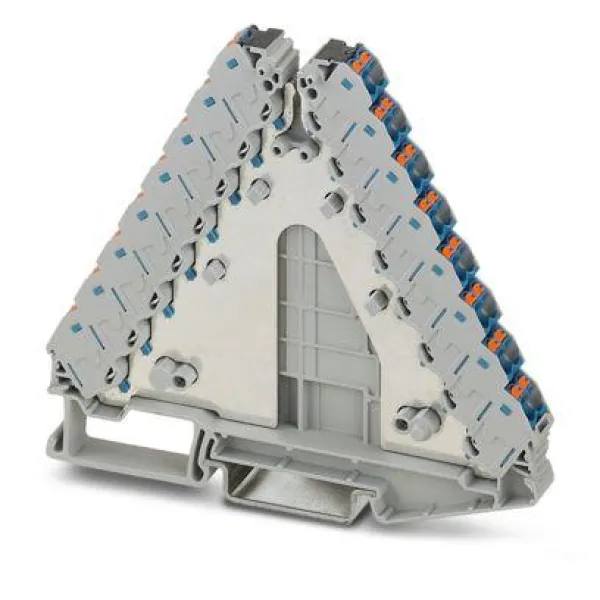

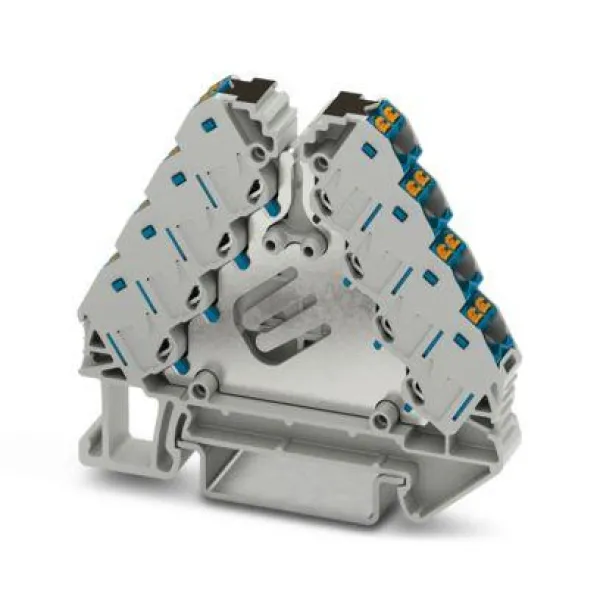

PTRVB 4-PV /BU

PTRVB 8-PV /BU

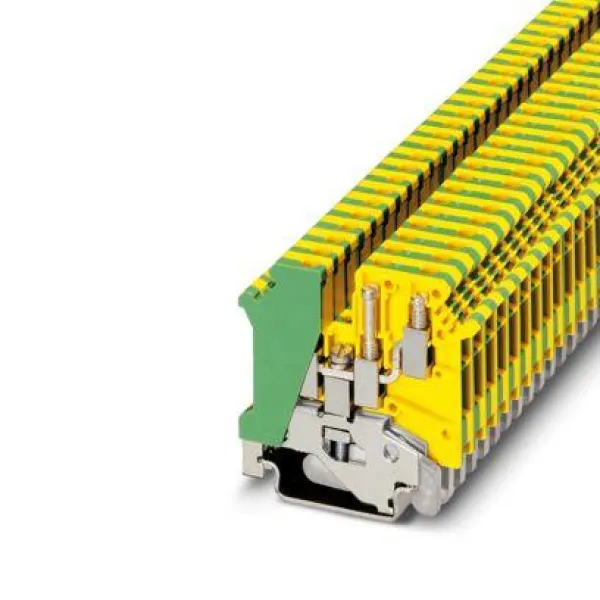

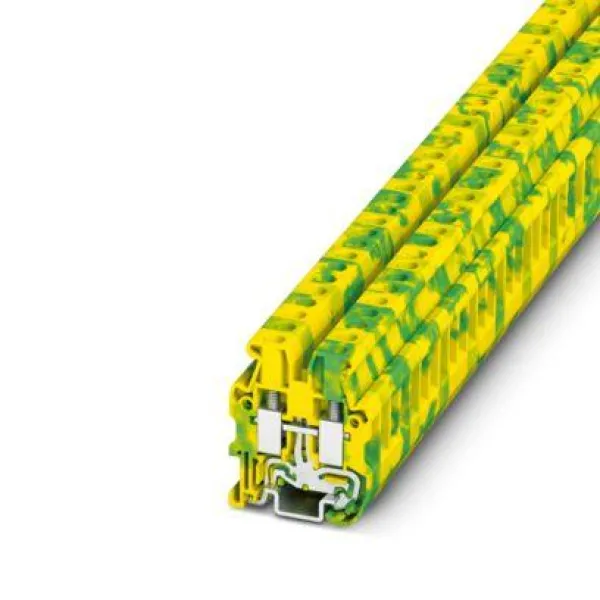

MUT 4-PE

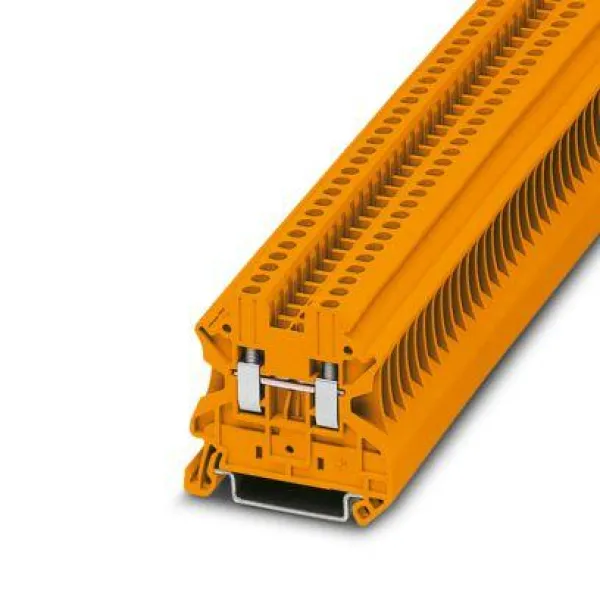

UT 2,5 OG

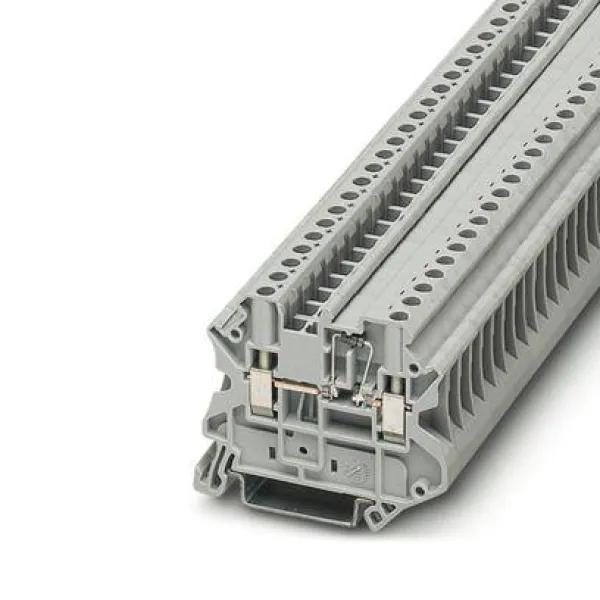

UT 4-MTD-DIO/L-R

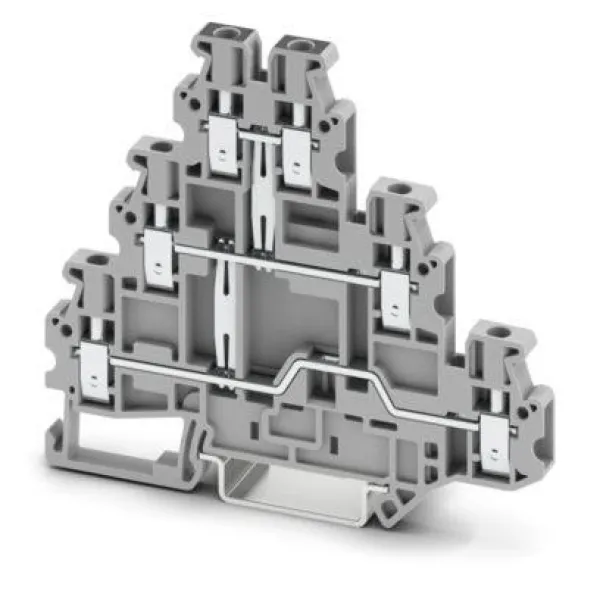

UT 2,5-3PV

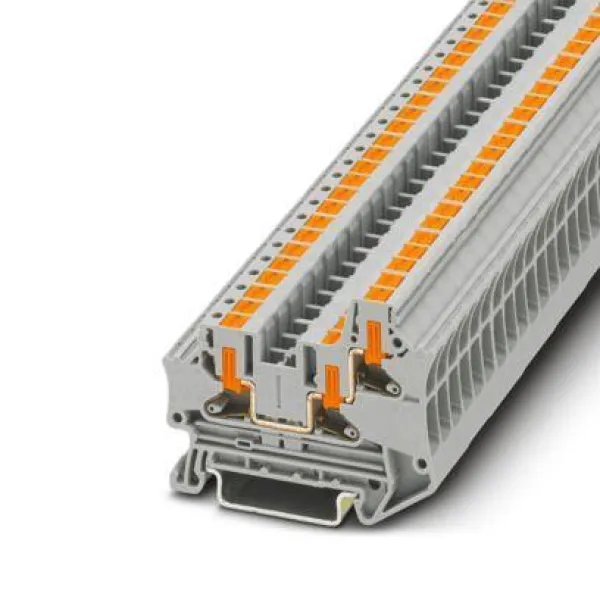

PT 2,5-TWIN-DIO/R-L

Component terminal block, with integrated 1N4007 diode, nom. voltage: 800 V, nominal current: 0.5 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

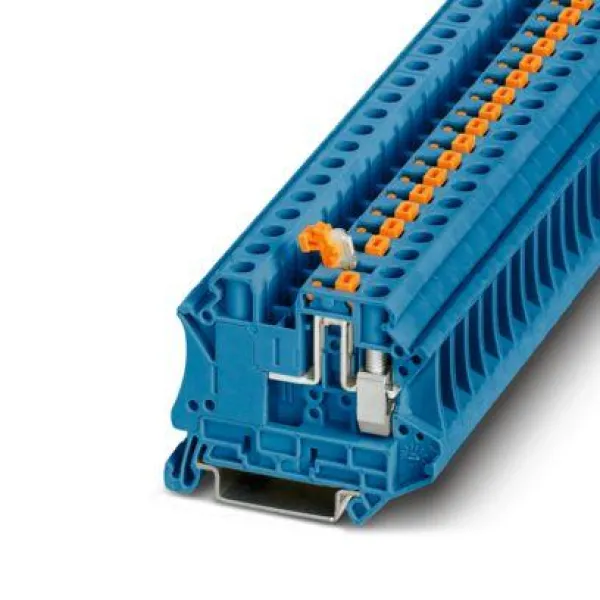

UT 6-MT BU

Knife-disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, color: blue

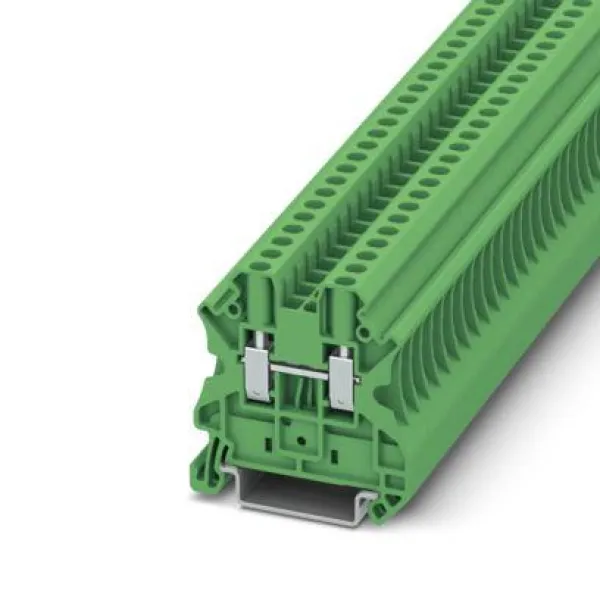

UT 4 GN

UK 5-TWIN-PE

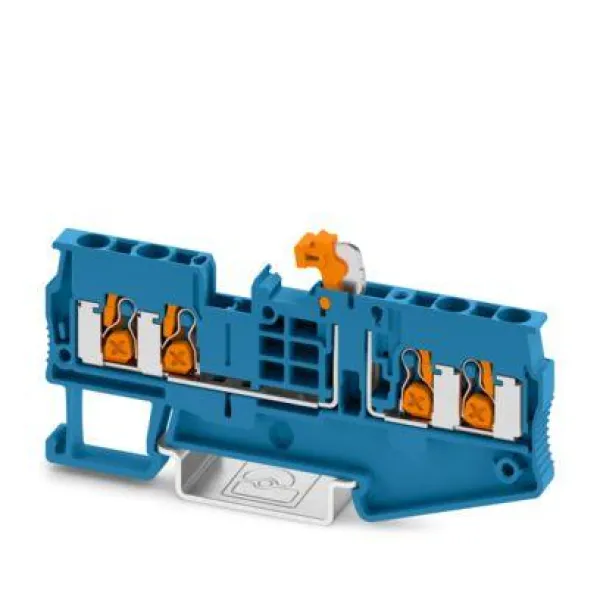

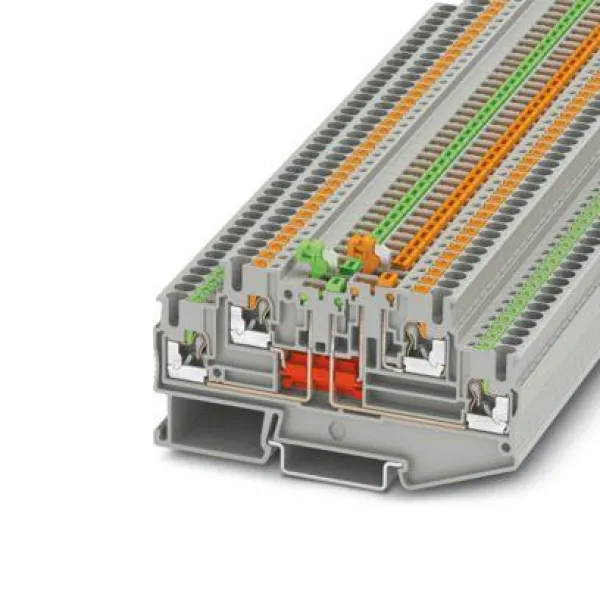

PTT 2,5-2MT

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

XT 2,5-QUATTRO-MT BU
