Terminal blocks with system
The Phoenix Contact terminal blocks enable a high degree of flexibility in terminal strip design. Choose between various connection technologies and combine the terminal blocks by installing bridges in the double function shaft. The terminal block system features standardized bridging, marking, and test accessories.
Product Search

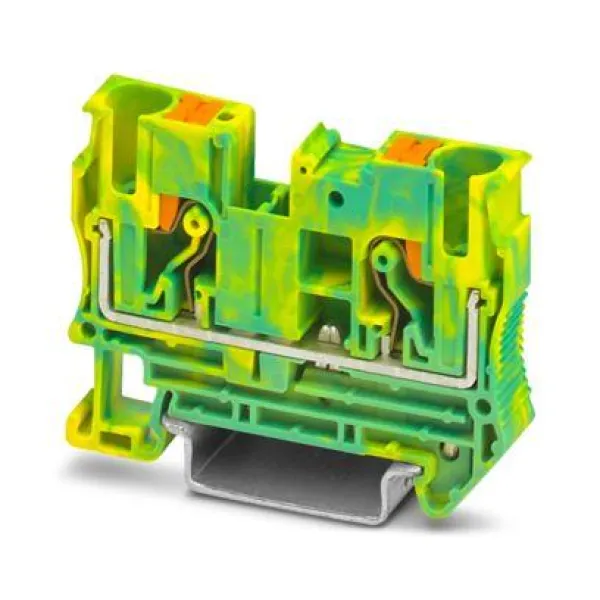

PT 6-PE
Ground terminal, number of connections: 2, number of positions: 1, connection method: Push-in connection, cross section: 0.5 mm_0 mm_, mounting type: NS5/7,5, NS 35/15, color: green-yellow
View Product

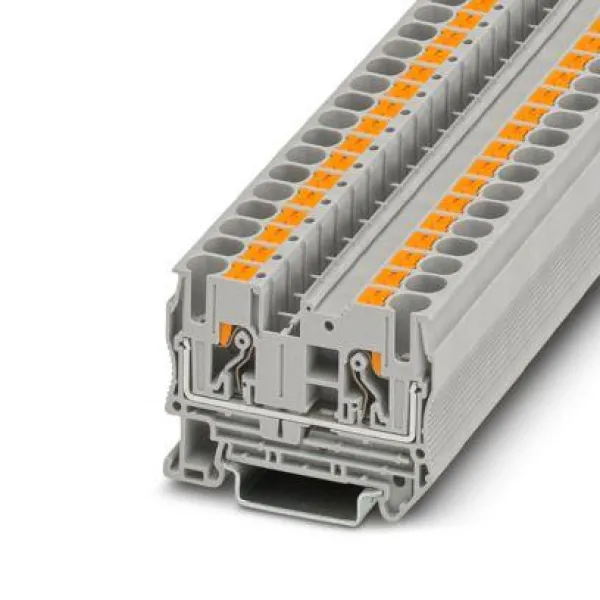

PT 6
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 2, number of positions: 1, connection method: Push-in connection, Rated cross section: 6 mm_, cross section: 0.5 mm_0 mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

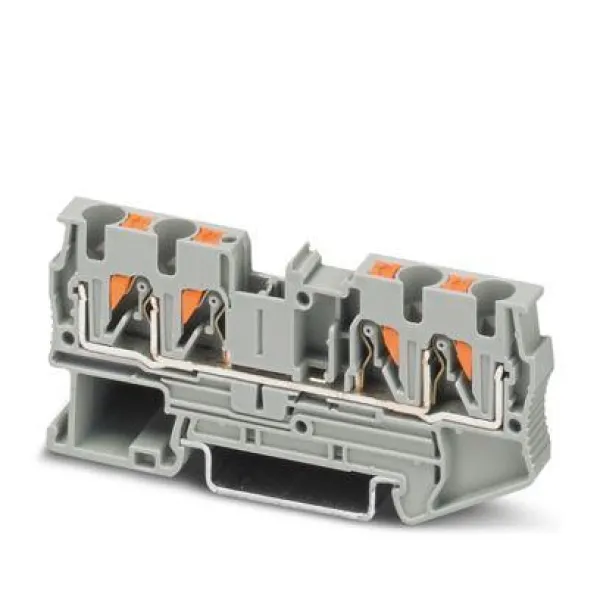

PT 4-QUATTRO
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 4 mm_, cross section: 0.2 mm_ mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

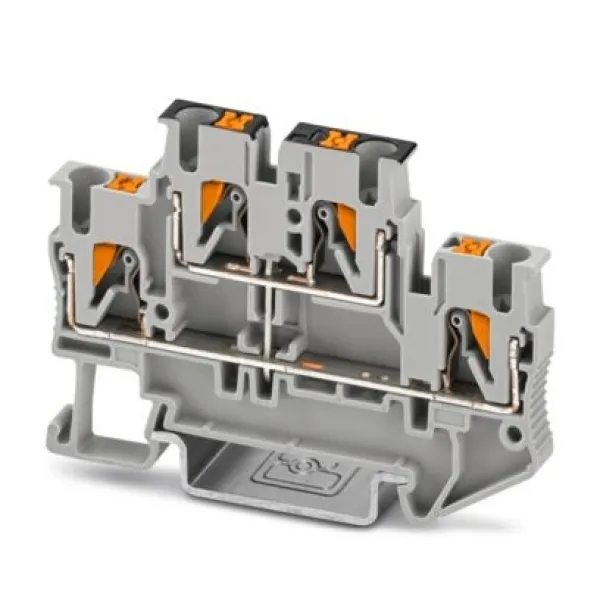

PTTB 4
Double-level terminal block, nom. voltage: 500 V, nominal current: 28 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 4 mm_, cross section: 0.2 mm_ - 6 mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

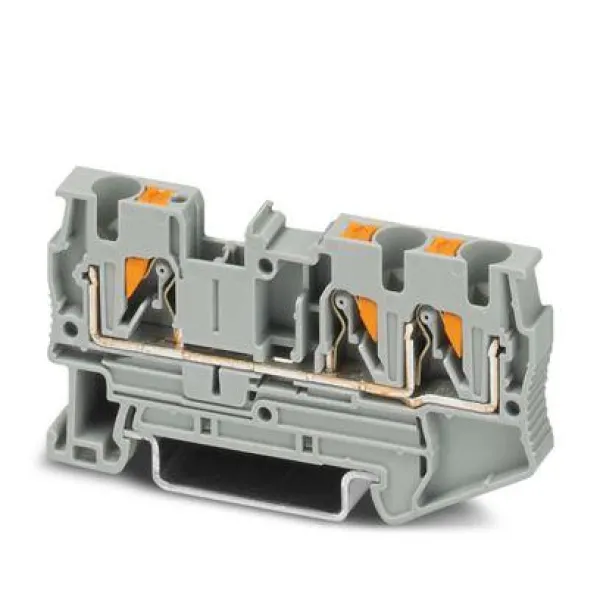

PT 4-TWIN
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm_, cross section: 0.2 mm_ mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

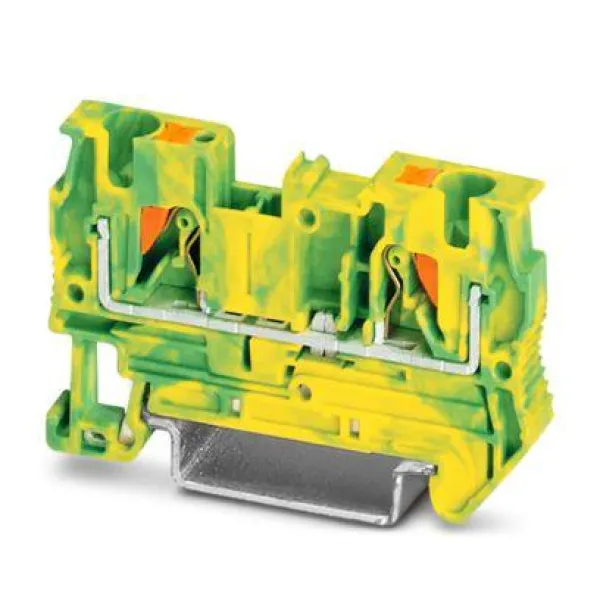

PT 4-PE
Ground terminal, number of connections: 2, connection method: Push-in connection, cross section: 0.2 mm_ mm_, mounting type: NS5/7,5, NS 35/15, color: green-yellow
View Product

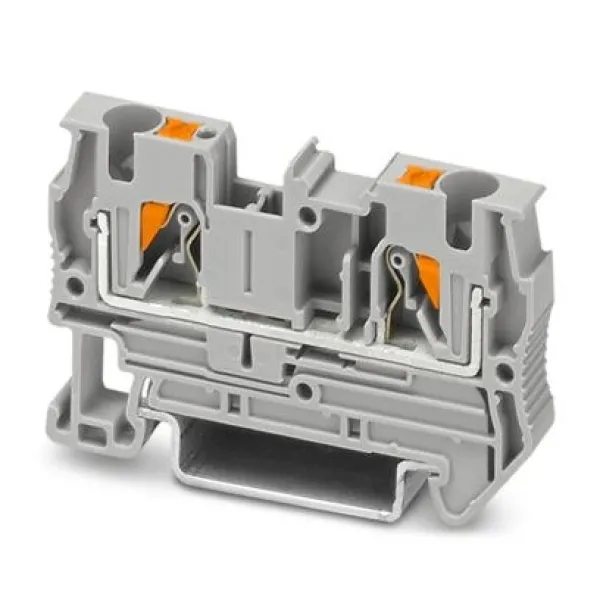

PT 4
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, connection method: Push-in connection, Rated cross section: 4 mm_, cross section: 0.2 mm_ mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

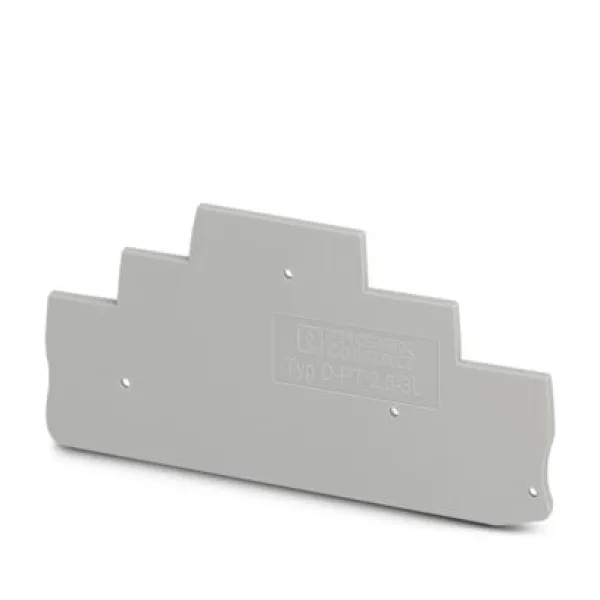

D-PT 2,5-3L
End cover, depth: 50.2 mm, width: 2.2 mm, height: 102.2 mm, color: gray
View Product

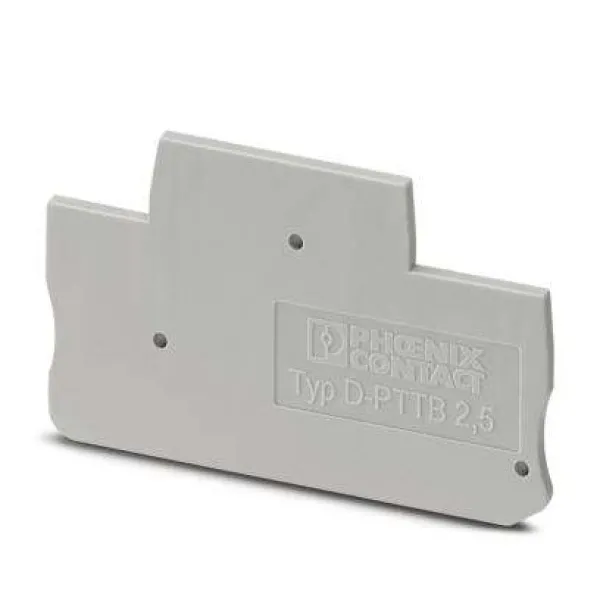

D-PTTB 2,5
End cover, depth: 39.6 mm, width: 2.2 mm, height: 68 mm, color: gray
View Product

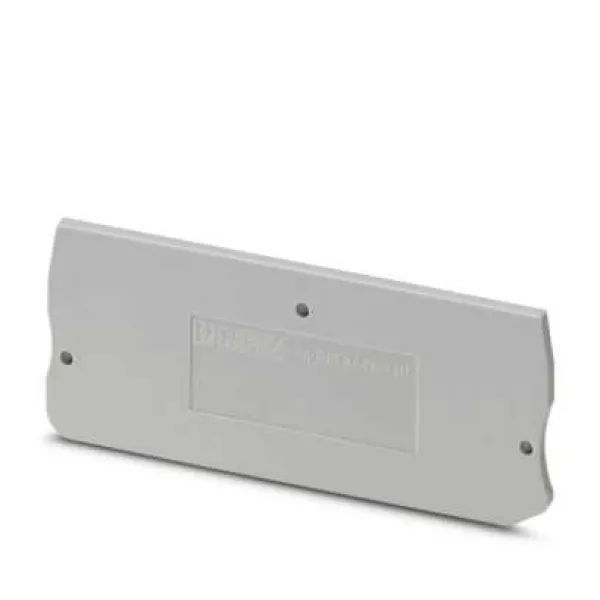

D-PT 2,5-TWIN-MT
End cover, depth: 29.1 mm, width: 2.2 mm, height: 73.7 mm, color: gray
View Product

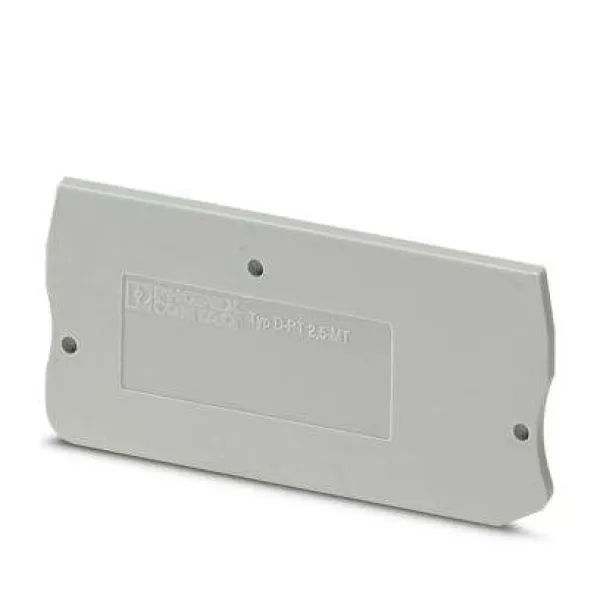

D-PT 2,5-MT
End cover, depth: 29.1 mm, width: 2.2 mm, height: 62 mm, color: gray
View Product

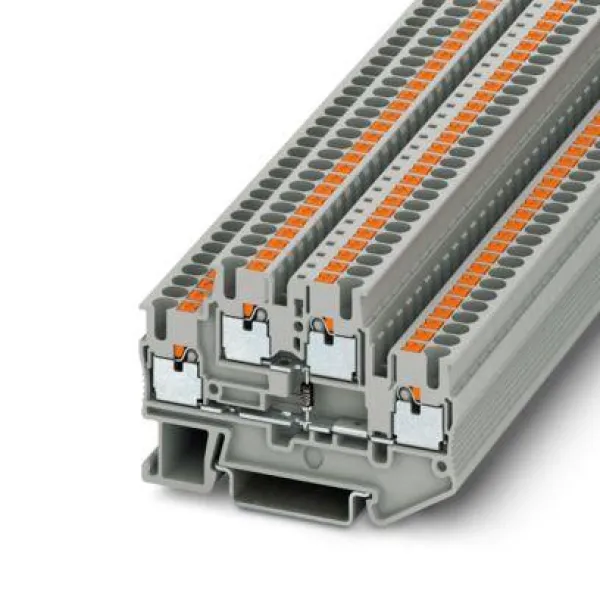

PTTB 2,5-DIO/O-U
Component terminal block, with integrated 1N4007 diode, nom. voltage: 500 V, nominal current: 0.5 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 2.5 mm_, cross section: 0.14 mm_ mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

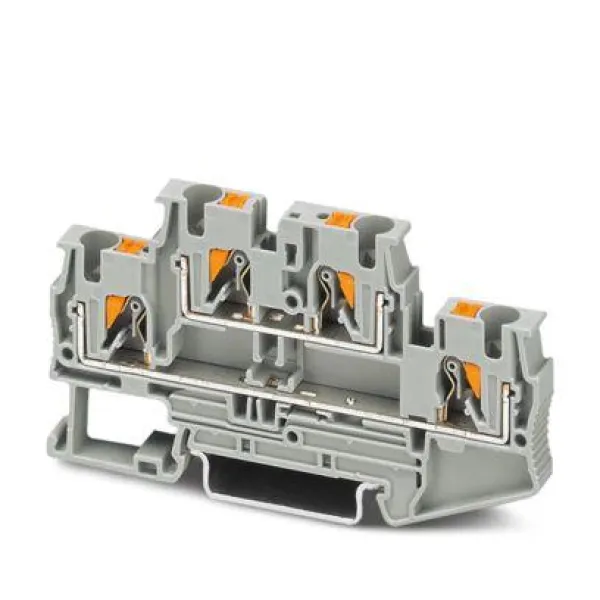

PTTB 2,5-PV
Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm_, cross section: 0.14 mm_ - 4 mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

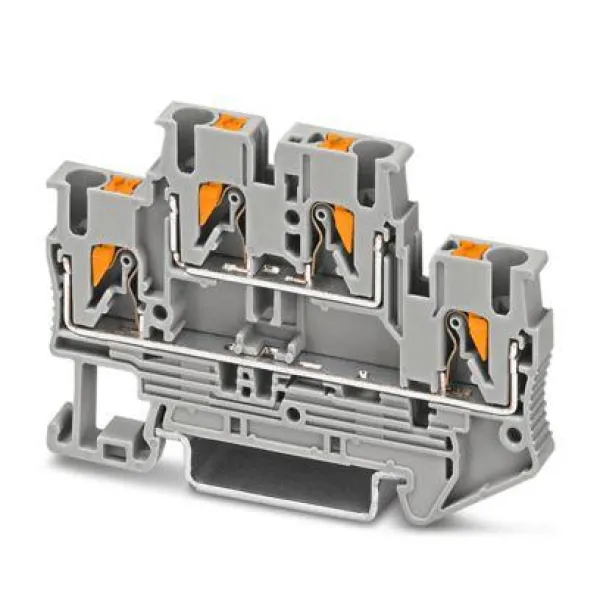

PTTB 2,5
Double-level terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm_, cross section: 0.14 mm_ - 4 mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product

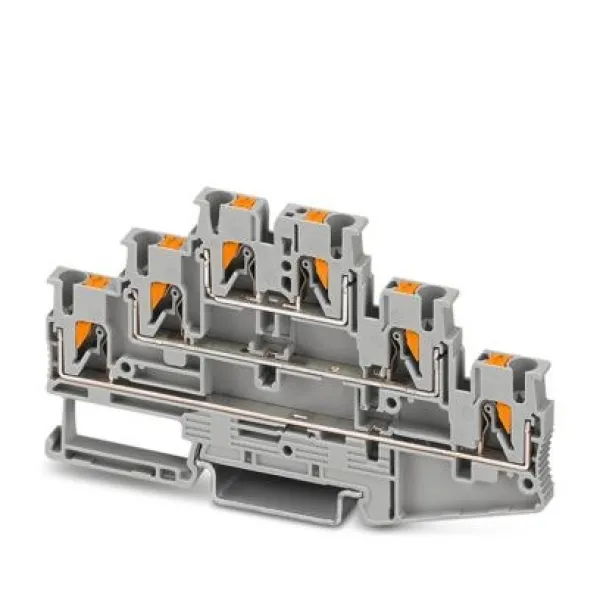

PT 2,5-3L
Multi-level terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Push-in connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm_, cross section: 0.14 mm_ - 4 mm_, mounting type: NS5/7,5, NS 35/15, color: gray
View Product
PTTBS 2,5-2MTB
Knife-disconnect terminal block, Double level with angled contour and two disconnect knives, nom. voltage:00 V, nominal current:6 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section:.5 mm_, cross section: 0.14 mm_ mm_, mounting: NS5/7,5, NS 35/15, color:ray
View Product
PT 2,5-DIO/L-R
Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated 1N4007 diode, nom. voltage:00 V, nominal current:.5 A, connection method: Push-in connection, Rated cross section:.5 mm_, cross section: 0.14 mm_ mm_, mounting: NS5/7,5, NS 35/15, color:ray
View Product
PT 2,5-TG
Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage:00 V, nominal current:0 A, connection method: Push-in connection, Rated cross section:.5 mm_, cross section: 0.14 mm_ mm_, mounting: NS5/7,5, NS 35/15, color:ray
