System cabling for controllers

CABLE-FLK20/OE/0,14/ 50

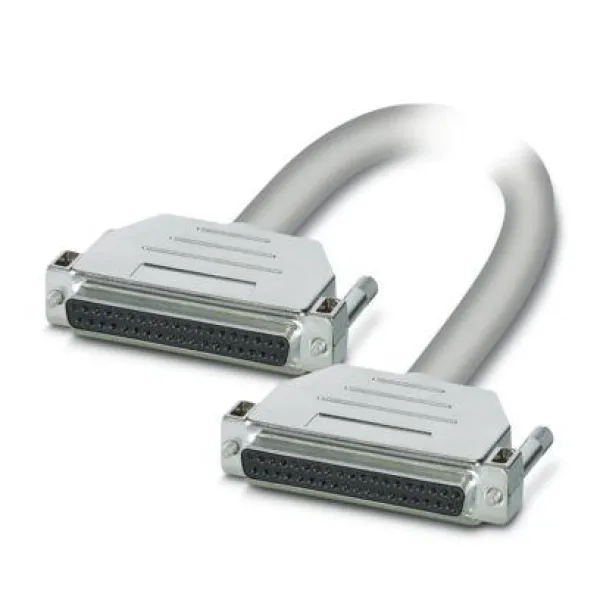

CABLE-D37SUB/B/B/1000/KONFEK/S

Assembled shielded round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 10 m

FLK 50/EZ-DR/ 600/KONFEK

CABLE-FLK50/0,14/HF/ 1,0M

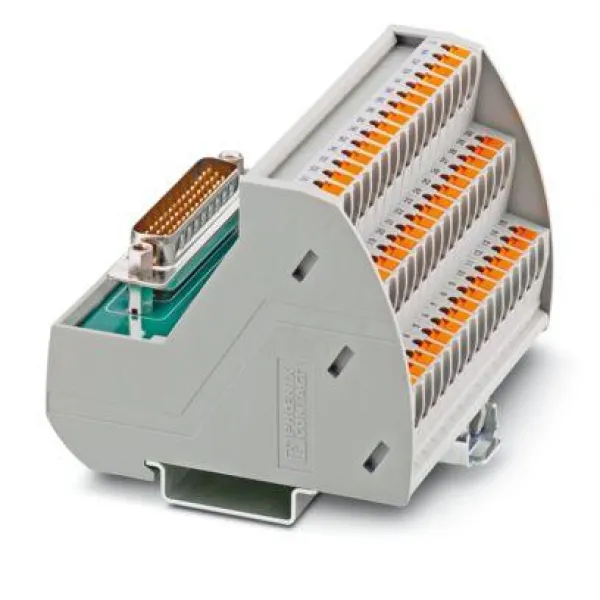

VIP-3/PT/HD44SUB/M

VARIOFACE module, with push-in connections and high density D-SUB miniature male connector, for mounting on NS 35 rails, no. of pos.: 44

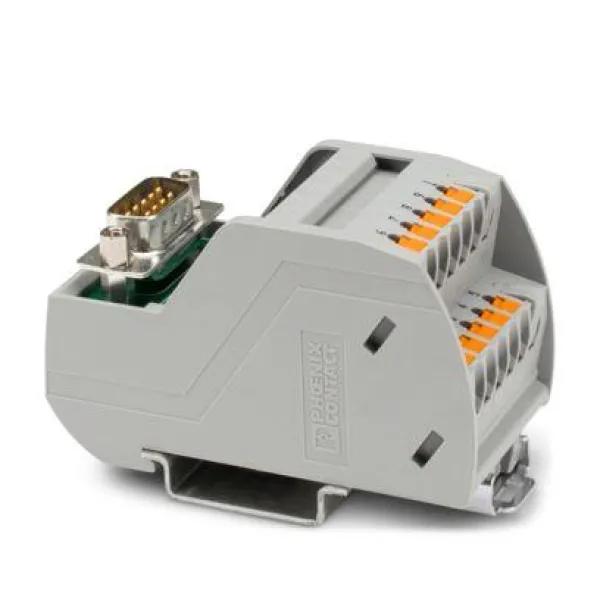

VIP-2/PT/D 9SUB/M

VARIOFACE module, with push-in connections and male D-SUB miniature pin strip, for mounting on NS 35 rails, 9-pos.

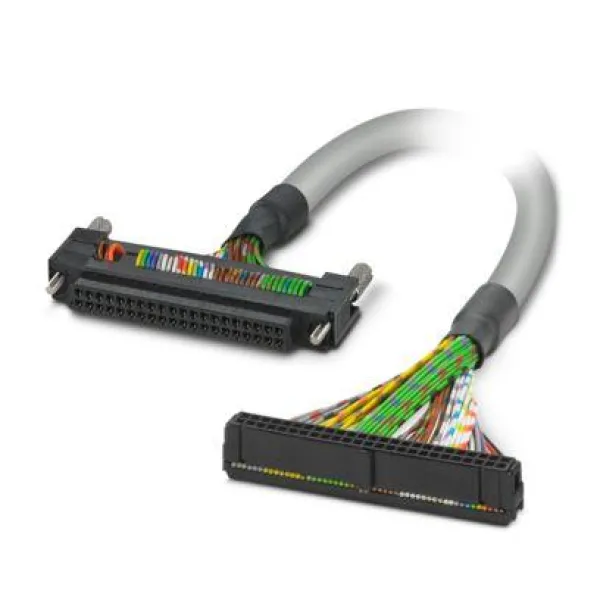

CABLE-FCN40/1X50/ 4,0M/M340

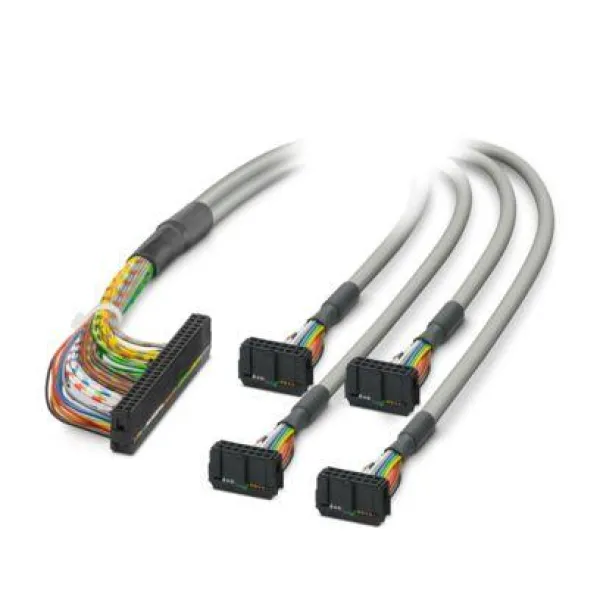

FLK 50/4X14/EZ-DR/ 150/KONFEK

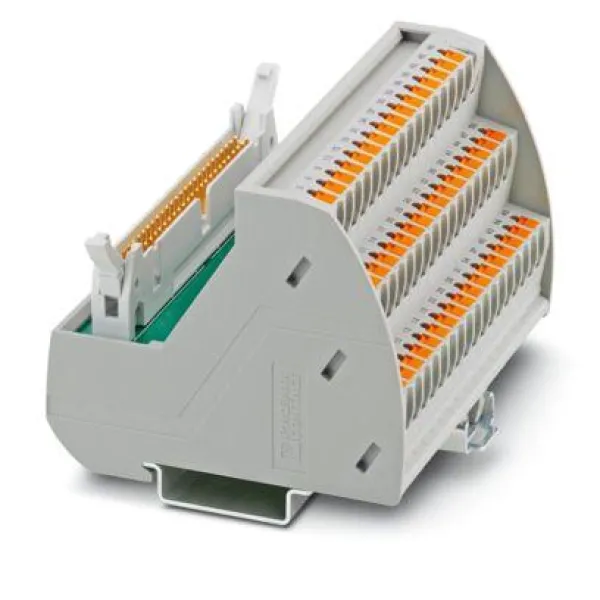

VIP-3/PT/FLK50

VARIOFACE module, with push-in connection and flat-ribbon cable connector, for mounting on NS 35 DIN rails, with pin strip plus short and long locking latches for socket strips, 50-pos.

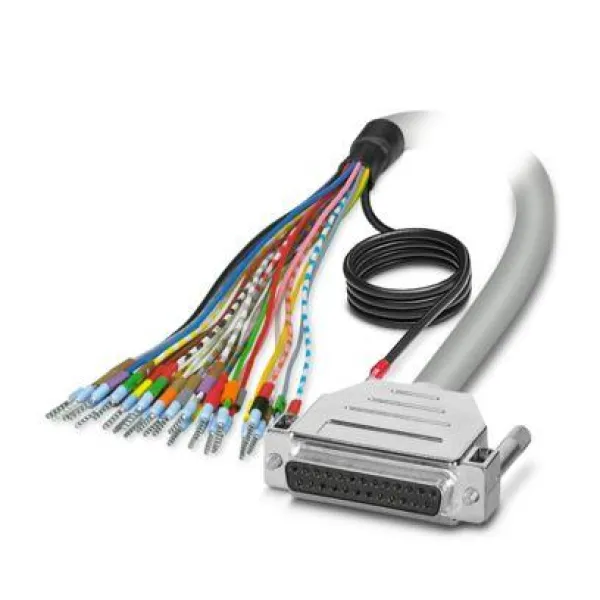

CABLE-D-25SUB/F/OE/0,25/S/6,0M

Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB socket strip (1x 25-position); cable length: 6 m

FLK 20/EZ-DR/ 100KONFEK

FLK 20/2FLK14/EZ-DR/100/KONFEK

FLK 50/4X14/EZ-DR/ 200/KONFEK

CABLE-D-25SUB/M/OE/0,25/S/1,0M

Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 1 m

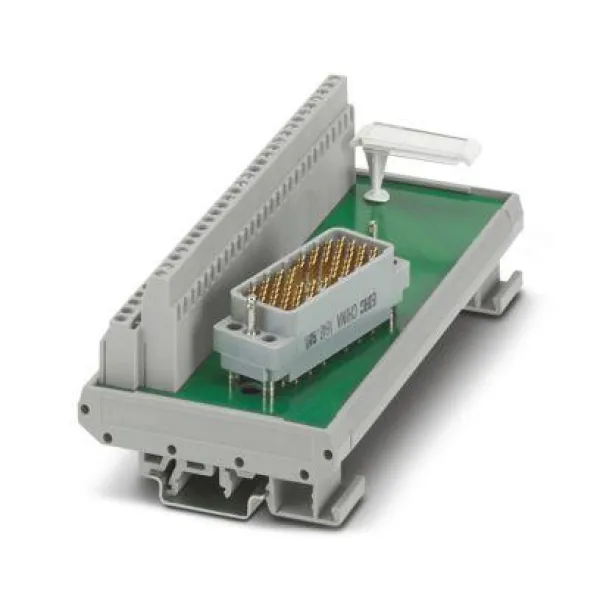

UMK- EC56/56-XOL

Interface module, connection 1: Screw connection, connection 2: EDAC / ELCO pin strip 1x 56-position (ELCO pin strip type 8016/EDAC pin strip type 516, left)

CABLE-D15SUB/B/S/100/KONFEK/S

VIP-2/PT/FLK50/PLC

VARIOFACE interface module, with push-in connection, for 32 channels

FLKM 50-PA-S300
