Motor starters and electronic switching devices

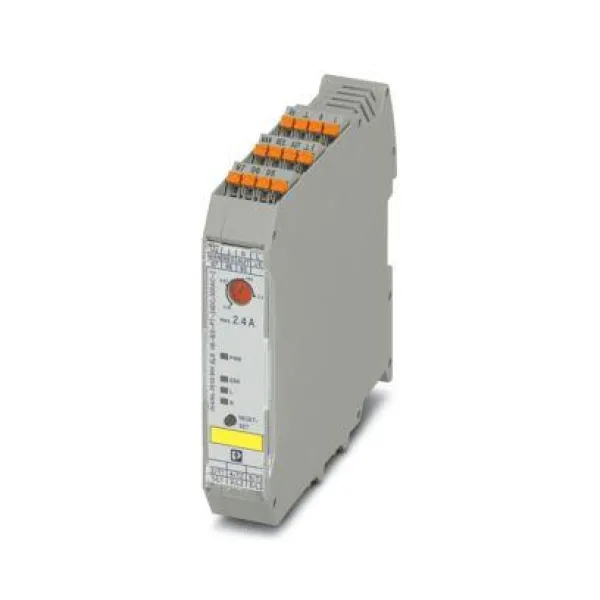

ELR H3-I-PT- 24DC/500AC-2

Hybrid motor starter for starting 3~ AC motors up to 500 V AC and 2.4 A output current, with 24 V DC control voltage, adjustable overload shutdown, and push-in connection.

ELR H5-I-SC- 24DC/500AC-9

Hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 9 A output current, with 24 V DC control voltage, adjustable overload shutdown, and screw connection.

CSS 0.25-1/3

Speed starter with soft start and configurable speed for starting and reversing motors up to 230 V AC and 0.25 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, single-phase load input

CSS 0.75-1/3-EMC

Speed starter with soft start and configurable speed for starting and reversing motors up to 230 V AC and 0.75 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, single-phase load input, with integrated EMC filter

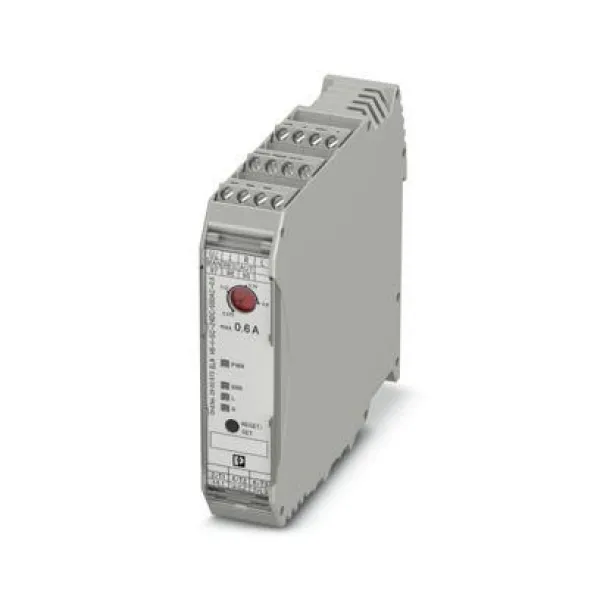

ELR H5-IES-PT/500AC-06-IFS

Networkable hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 0.6 A output current, with adjustable overload shutdown, emergency stop function to SIL 3 / PL e and push-in connection, DIN rail connector provided.

EM-CSS-MOTORSHIELD-35

Shroud for motor lines for 35 mm wide CONTACTRON Speed Starters

CSS 0.37-1/3-EMC

Speed starter with soft start and configurable speed for starting and reversing motors up to 230 V AC and 0.37 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, single-phase load input, with integrated EMC filter

CSS 0.55-3/3-EMC

Speed starter with soft start and configurable speed for starting and reversing motors up to 480 V AC and 0.55 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, three-phase load input, with integrated EMC filter

EM-CSS-MOTORSHIELD-45

Shroud for motor lines for 45 mm wide CONTACTRON Speed Starters

ELR W3-230AC/500AC- 9I

ELR 1-SC-24DC/600AC-50

Single-phase solid-state contactor, input voltage: 24 V DC, output current: 50 A, zero voltage switch

ELR 1-SC-230AC/600AC-20

Single-phase solid-state contactor, input voltage: 230 V AC, output current: 20 A, zero voltage switch

EM-PNET-GATEWAY-IFS

Gateway for the connection of up to 32 INTERFACE system devices via PROFINET to a higher-level controller. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.

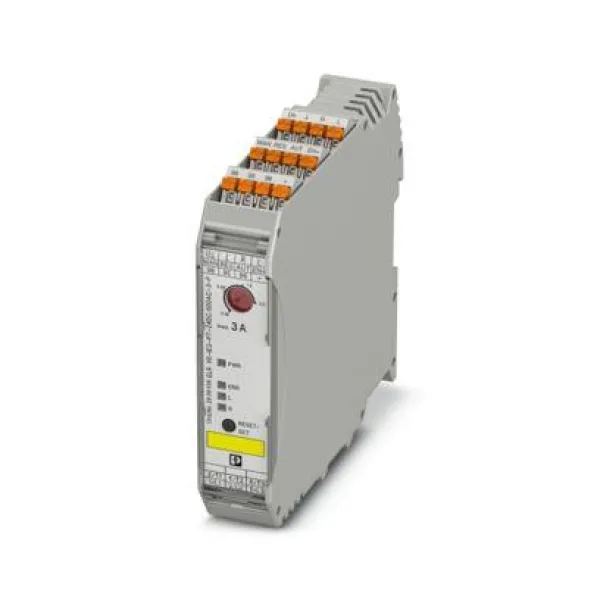

ELR H5-IS-PT- 24DC/500AC-3-P

Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.

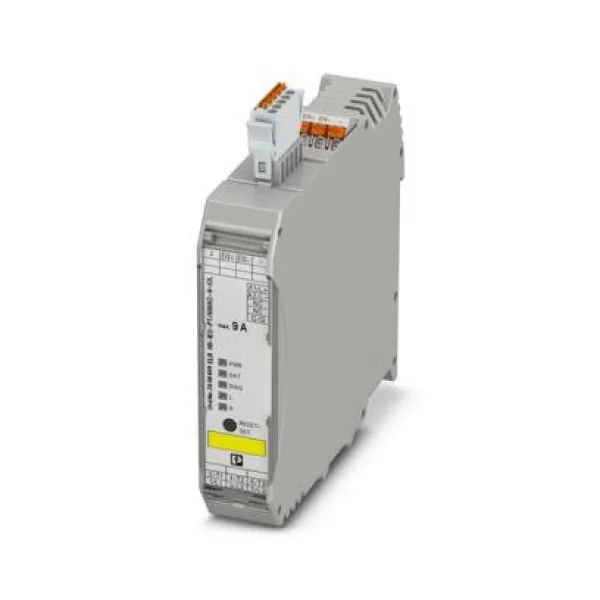

ELR H3-IES-PT/500AC-9-IOL

Networkable hybrid motor starter for starting 3~ AC motors up to 500 V AC and 9 A output current, with adjustable overload shutdown, emergency stop function up to SIL 3/PL e, and Push-in connection. Connection to IO-Link.

CSS 0.37-3/3-EMC

Speed starter with soft start and configurable speed for starting and reversing motors up to 480 V AC and 0.37 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, three-phase load input, with integrated EMC filter

CSS 0.55-1/3-EMC

Speed starter with soft start and configurable speed for starting and reversing motors up to 230 V AC and 0.55 kW, configurable motor protection, analog input, STO function up to SIL 3/PL e, single-phase load input, with integrated EMC filter

ELR H3-IS-PT- 24DC/500AC-9-P

Hybrid motor starter as an alternative to a conventional protective circuit. Starts 3~ AC motors up to 9 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
