Energy monitoring

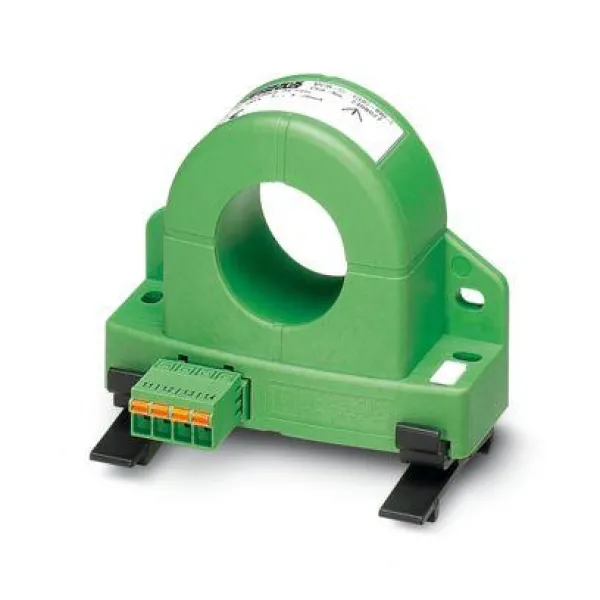

PACT MCR-V1-21-44-400-5A-1

EEM-MB370-EIP

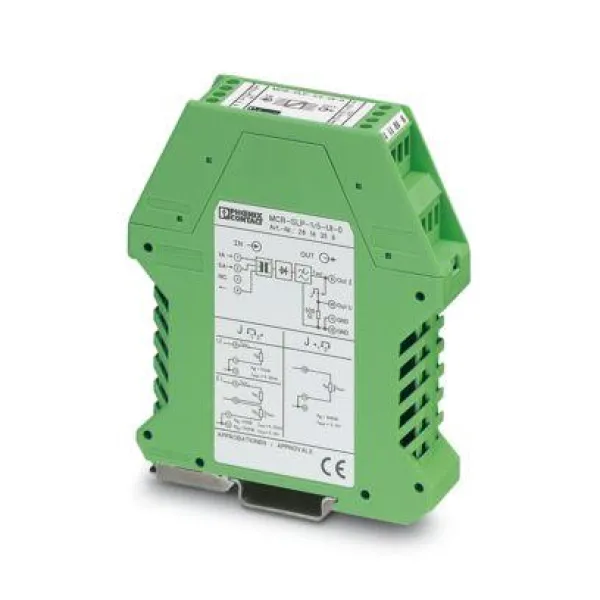

MCR-SL-CUC-400-I

EEM-MA770-R

Multi-functional energy measuring device with integrated Modbus RTU/TCP interface for measuring electrical parameters in low-voltage installations up to 690 V. (phoenixcontact.com/empro-help)

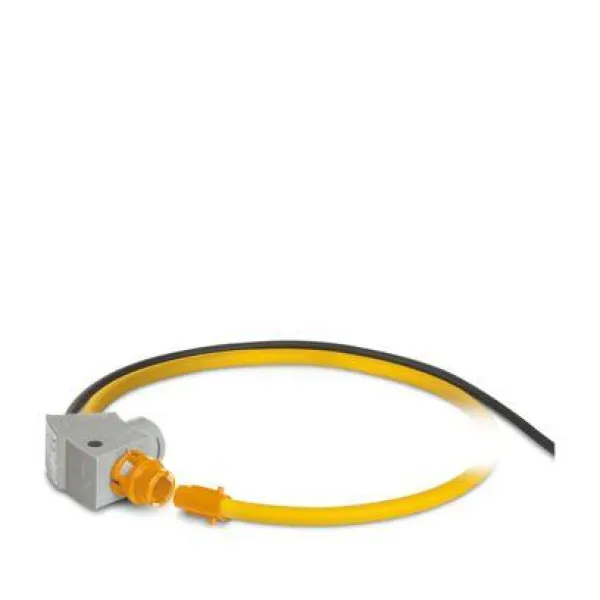

PACT RCP-D190

600 mm long Rogowski coil. The measuring coil diameter when installed is 190 mm. The Rogowski coil is used for AC current measurement for busbars and power lines.

SCK-M-U-1500V

SCK measuring module for monitoring photovoltaic systems, 1 x voltage measurement up to 1500 V DC, 1 x analog output (2 ... 10 V)

EEM-MA771-PN

Multifunctional energy measuring device with direct Rogowski connection and integrated Modbus/TCP and PROFINET interface for measuring electrical parameters in low-voltage electrical installations up to 690 V. (phoenixcontact.com/empro-help)

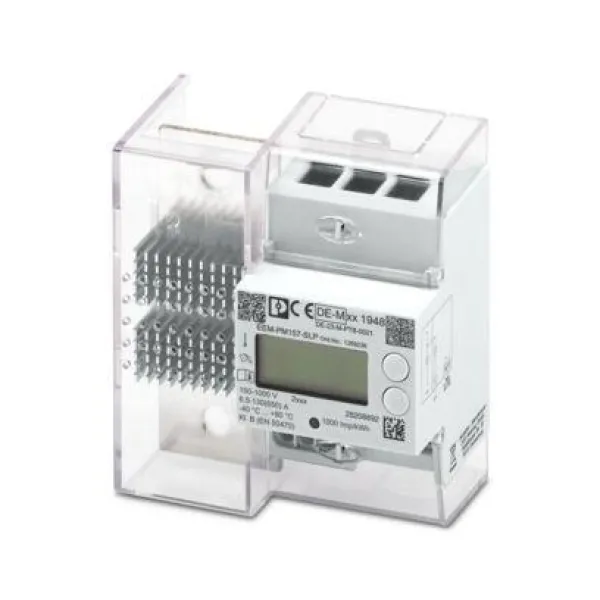

EEM-PM157-SLP

ECM-UC-10A-MTCP

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Four current measuring ranges: 0 A ... 0.1 A to 0 A ... 12.5 A. Modbus/TCP interface configuration  (RJ45), Standard configuration, Push-in connection

ECM-UC-100A-UI-REL

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Current measuring ranges: 0 A ... 125 A. Relay output, Transistor output, Standard configuration, Push-in connection

ECM-UC-100A-MTCP

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Current measuring ranges: 0 A ... 125 A. Modbus/TCP interface configuration  (RJ45), Standard configuration, Push-in connection

ECM-UC-100A-MRTU

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Current measuring ranges: 0 A ... 125 A. Modbus/RTU interface configuration  (RS-485), Standard configuration, Push-in connection

ECM-UC-10A-MRTU

Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Four current measuring ranges: 0 A ... 0.1 A to 0 A ... 12.5 A. Modbus/RTU interface configuration  (RS-485), Standard configuration, Push-in connection

EEM-MA770-24DC

Multi-functional energy measuring device with 24 V DC supply and integrated Modbus/TCP interface for measuring electrical parameters in low-voltage installations up to 690 V (phoenixcontact.com/empro-help)

PACT RCP-4000A-1A-D190

Set consisting of a 1 A measuring transducer and a Rogowski coil with signal line. Length of Rogowski coil: 600 mm, diameter: 190 mm. Length of signal line: 3 m. The Rogowski coil measures the AC current of busbars and power lines.

PACT RCP-4000A-1A-D95-10M

Set consisting of a 1 A measuring transducer and a Rogowski coil with signal line. Length of Rogowski coil: 300 mm, diameter: 95 mm. Length of signal line: 10 m. The Rogowski coil measures the AC current of busbars and power lines.

EEM-EM377

3-phase energy meter for active power measurement with direct measurement in grids of up to 500 V/80 A, with S0 output, Ethernet interface, certified in accordance with the MID directive

EEM-MA770-EIP
