Electronics housings for the DIN rail and for field applications

CR MSTBO-G1

Coding section, inserted into the recess in the header or the inverted plug, red insulating material

ICS25-BC100X110-V-7035 DEV-KIT

DIN rail housing, for mounting on a DIN rail, with closed latching cover, color: light grey (similar RAL 7035), width: 25 mm, height: 100 mm, depth: 116.65 mm

MSTBT 2,5 HC/ 4-STP GY7035

PCB connector, nominal cross section: 2.5 mm², color: light grey, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: MSTBT 2,5 HC/..-STP, pitch: 5 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: without, mounting: without

ME 22,5 OT-3MSTBO KMGY

DIN rail housing, Upper housing part for connectors with header, width: 22.6 mm, height: 102 mm, depth: 60.15 mm, color: light grey (similar RAL 7035)

MCO 1,5/ 5-G1L-3,5 KMGY

UM-PRO LID-92 BK

Press-drawn section housings, Latching, Side element for U-shaped profile cover, width: 10.35 mm, height: 97.51 mm, depth: 39.7 mm

UM-BASIC/PRO 72 COVER-R KMGY

Lateral element (right) with mounting foot for DIN rails for UM-BASIC profiles with a PCB width of 72 mm

ME 22,5 UTG KMGY

DIN rail housing, Lower housing part with metal foot catch, tall design, without vents, width: 22.6 mm, height: 99 mm, depth: 107.3 mm, color: light grey (similar RAL 7035), cross connection: without bus connector, number of positions cross connector: not relevant

ICS25-F22S-7035

ICC25-H/5L3,5-7035

PCB headers, color: light grey, nominal current: 8 A, rated voltage (III/2): 150 V, contact surface: Tin, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: ICC..-H/..L3,5, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.8 mm, number of solder pins per potential: 1, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: without, type of packaging: Box packaging, Product with pin output on left side

RPI-BC 107,6 DEV-KIT KMGY

EH 90 F-B/ABS BK9005

ME-SAS

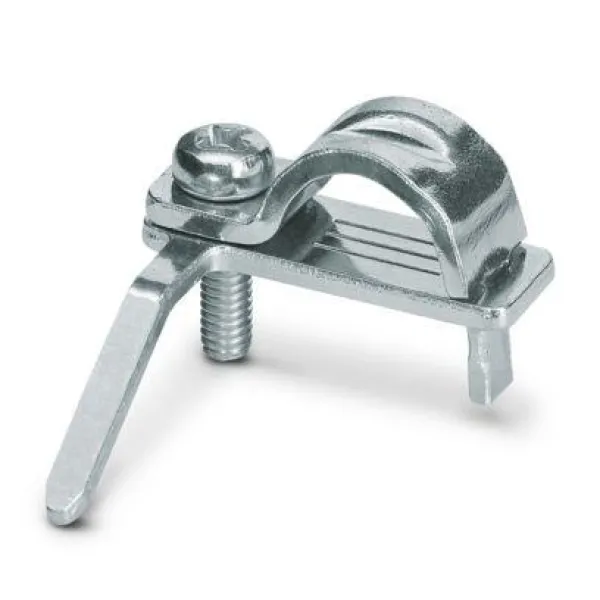

Shield connection clamp for terminal points starting from 2.5 mm²

ICS25-F22A-7035

UM-PRO 122 COVER-L BK

Lateral element (left) with mounting foot for DIN rails for UM-PRO profiles with a PCB width of 122 mm

ME 45 UTG/FE KMGY

MSTBO 2,5/ 3-G1R KMGY

PCB headers, nominal cross section: 2.5 mm², color: light grey, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-G1R, pitch: 5 mm, connection method: pluggable, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on right side

ICC25-H/4R5,0-7035
