Distribution blocks and device terminal blocks

PTFIX 6/18X2,5-NS35 GN

PTFIX 10/12X4 GNYE

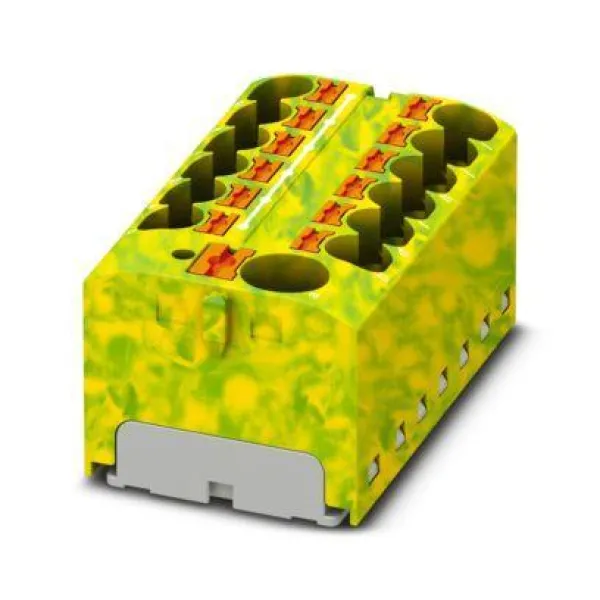

Distribution block, bridged internally, nominal current: 57 A, number of connections: 13, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm² - 10 mm², Push-in connection, Load contact, cross section: 0.2 mm² - 6 mm², mounting type: Free-hanging, color: green-yellow

G 10/ 3

PTFIX 6/18X2,5-NS35 WH

G 5/ 3

PTFIX 6/6X2,5-NS35A BK

PTFIX 6/18X2,5 GNYE

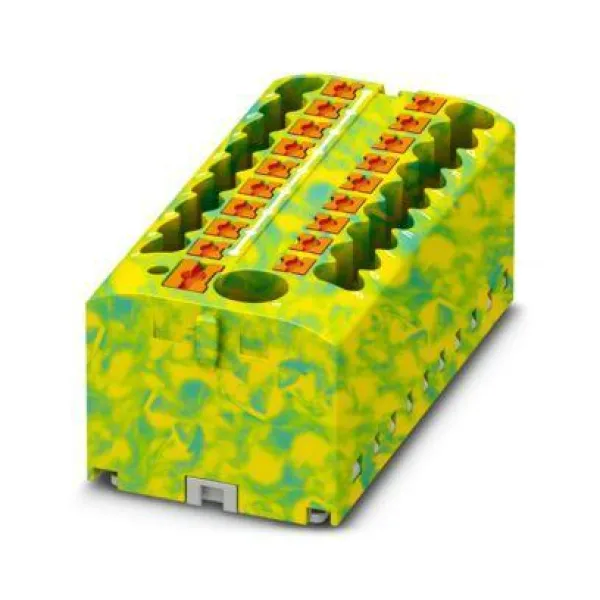

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: Free-hanging, color: green/yellow

PTFIX 6/12X2,5-NS35A BK

PTFIX 18X1,5 GY

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 17.5 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: gray

PTFIX 6/6X2,5 RD

PTFIX 10/6X4 WH

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm² - 10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: white

PTFIX 6/6X2,5 BK

PTFIX 6/12X2,5-NS35A GY

PTFIX 6/18X2,5-NS35 BN

PTFIX 6/18X2,5-NS35 BU

PTFIX 6/18X2,5-NS35 OG

PTFIX 6/18X2,5-NS35 RD

Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 690 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: red

PTFIX 6/18X2,5-NS35 VT
