Device circuit breakers
Device circuit breakers protect your equipment against overload and short-circuit currents and selectively shut down just the affected circuit in the event of a fault. To provide the ideal protection, our circuit breakers use various technologies: electronic, thermomagnetic, and thermal. Optimize your production process and minimize downtimes by using our overcurrent protection.
Product Search
TMC 81B 40A
Miniature Circuit Breaker, number of positions: 1, cross section: 1 mm²- 35 mm², AWG: 18 - 2, mounting type: DIN rail: 35 mm
View Product
TMC 81B 12A
Miniature Circuit Breaker, number of positions: 1, cross section: 1 mm²- 35 mm², AWG: 18 - 2, mounting type: DIN rail: 35 mm
View Product
TMC 81B 02A
Miniature Circuit Breaker, number of positions: 1, cross section: 1 mm²- 35 mm², AWG: 18 - 2, mounting type: DIN rail: 35 mm
View Product
CB RC BRIDGE
Bridge plug for bridging contacts 11 to 14 for CB base elements
View Product
CB E1 24DC/6A S-C P
Electronic circuit breaker, 1-pos., active current limitation, status output and control input, plug for base element.
View Product
CB E1 24DC/3A S-C P
Electronic circuit breaker, 1-pos., active current limitation, status output and control input, plug for base element.
View Product
CB E1 24DC/6A NC P
Electronic circuit breaker, 1-pos., active current limitation, 1 N/C contact, plug for base element.
View Product
CB E1 24DC/6A S-R P
Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
View Product
CB E1 24DC/3A S-R P
Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
View Product
CB E1 24DC/2A S-R P
Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
View Product
CB E1 24DC/1A S-R P
Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
View Product
CB TM2 8A F1 P
Thermomagnetic device circuit breaker, 2-pos., tripping characteristic F1 (fast-blow), 2 changeover contacts, plug for base element.
View Product
CB TM2 5A F1 P
Thermomagnetic device circuit breaker, 2-pos., tripping characteristic F1 (fast-blow), 2 changeover contacts, plug for base element.
View Product
CB TM2 3A F1 P
Thermomagnetic device circuit breaker, 2-pos., tripping characteristic F1 (fast-blow), 2 changeover contacts, plug for base element.
View Product
PTCB E1 24DC/0.2A NO
Single-channel, electronic device protection for 12-24 V DC loads. Fixed nominal current value: 0.2 A. With remote signaling and active current limitation. Can be combined with CLIPLINE terminal blocks. For installation on DIN rails.
View Product

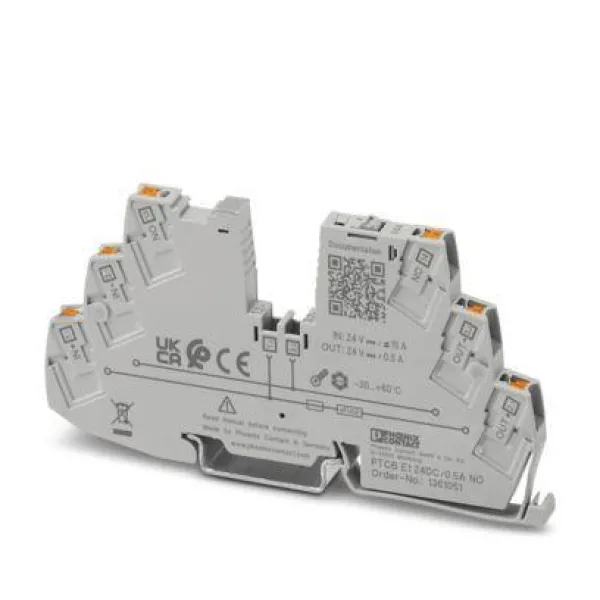

PTCB E1 24DC/0.5A NO
Single-channel, electronic device protection for 12-24 V DC loads. Fixed nominal current value: 0.5 A. With remote signaling and active current limitation. Can be combined with CLIPLINE terminal blocks. For installation on DIN rails.
View Product

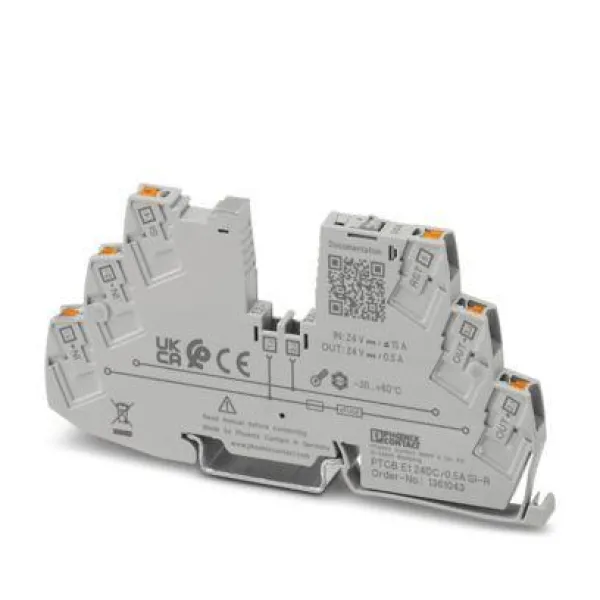

PTCB E1 24DC/0.5A SI-R
Single-channel, electronic device protection for 12-24 V DC loads. Fixed nominal current value: 0.5 A. With remote signaling, remote reset, and active current limitation. Can be combined with CLIPLINE terminal blocks. For installation on DIN rails.
View Product
CAPAROC E2 12-24DC/2-10A EX
2-channel electronic circuit breaker module for protecting 12 V DC and 24 V DC loads against overload and short circuit. Nominal current adjustable from 2 A to 10 A via step switch. EX e approval for zone 2. For DIN rail installation via the CAPAROC current rails.
