Cables and lines for signals, data, and power
Whether for signal and power transmission or for networks and bus systems, you can assemble your connectors yourself. Use preassembled cable versions. In addition to the complete range for field installation, Phoenix Contact offers copper- and FO-based data cables, hybrid cables, signal cables, and power cables. Solutions for photovoltaics, for energy storage systems, and cables by the meter complete the portfolio.
Contact our support team for a Wholesale Account and receive discounted pricing. Sign In
Product Search
PV-C3M-S 2,5-6 (-)
Photovoltaic connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 2.5 mm², max. conductor cross section: 6 mm², rated voltage: 1100 V DC, rated current: 35 A, Connection method: Spring-cage, Contact connection type: Pin, min. cable diameter: 5.5 mm, max. cable diameter: 8 mm, Follow-up item to 1774687
View Product
PV-C4F-S 2,5-6 (+)
Connector, Range of articles: SUNCLIX, color: black, number of positions: 1, min. conductor cross-section: 2.5 mm², max. conductor cross-section: 6 mm², rated voltage: 1500 V DC, rated current: 35 A, Connection method: Spring-cage, min. cable diameter: 5 mm, max. cable diameter: 8 mm
View Product
PV-C4F-S 6-16 (+)
Connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 6 mm², max. conductor cross section: 16 mm², rated voltage: 1500 V DC, rated current: 60 A, Connection method: Spring-cage, Contact connection type: Socket, min. cable diameter: 5.5 mm, max. cable diameter: 10 mm
View Product
PV-C4M-S 2,5-6 (-)
Connector, Range of articles: SUNCLIX, color: black, number of positions: 1, min. conductor cross-section: 2.5 mm², max. conductor cross-section: 6 mm², rated voltage: 1500 V DC, rated current: 35 A, Connection method: Spring-cage, min. cable diameter: 5 mm, max. cable diameter: 8 mm
View Product
PV-C4M-S 6-16 (-)
Connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 6 mm², max. conductor cross section: 16 mm², rated voltage: 1500 V DC, rated current: 60 A, Connection method: Spring-cage, Contact connection type: Pin, min. cable diameter: 5.5 mm, max. cable diameter: 10 mm
View Product

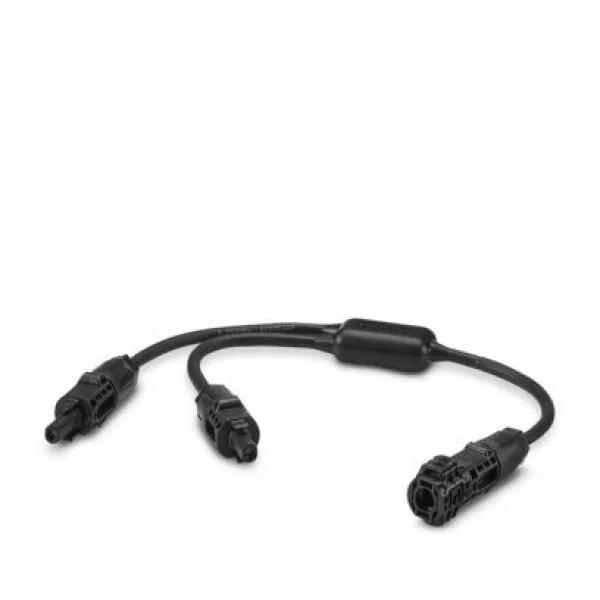

PV-ED6/Y-120(1+/2-)
Photovoltaic Y-distributor, Range of articles: SUNCLIX, housing material: PPE, color: black
View Product

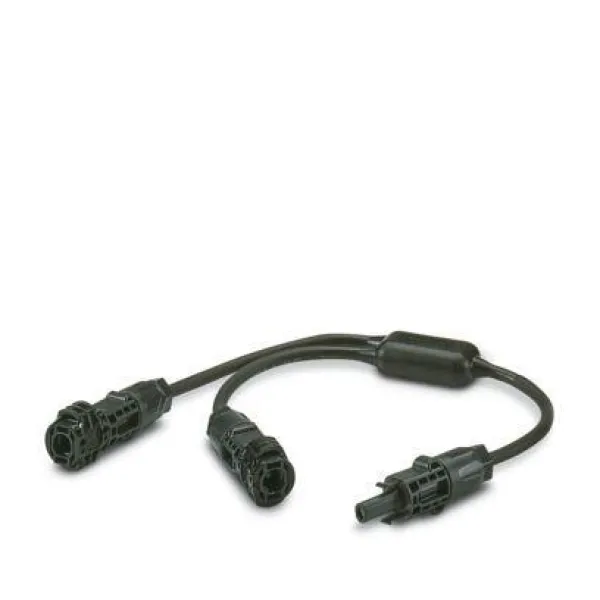

PV-ED6/Y-120(2+/1-)
Photovoltaic Y-distributor, Range of articles: SUNCLIX, housing material: PPE, color: black
View Product

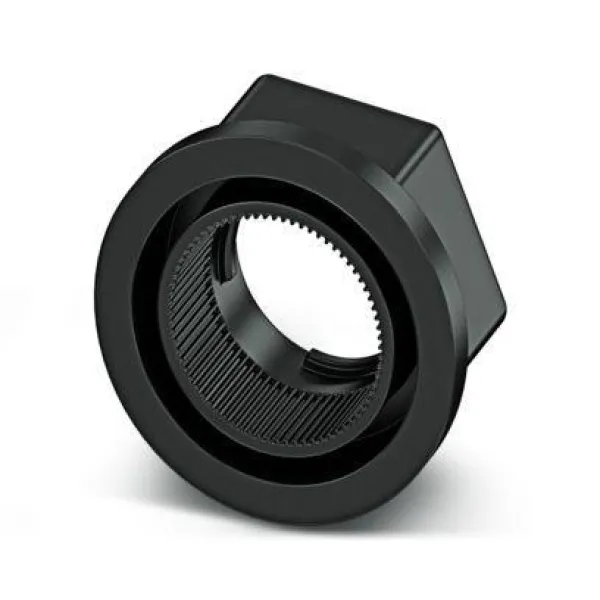

PV-FT-C-WALLMOUNT BK
Screw connection, Range of articles: SUNCLIX, Screw nut suitable for device wall thicknesses of 1 mm ... 5 mm
View Product

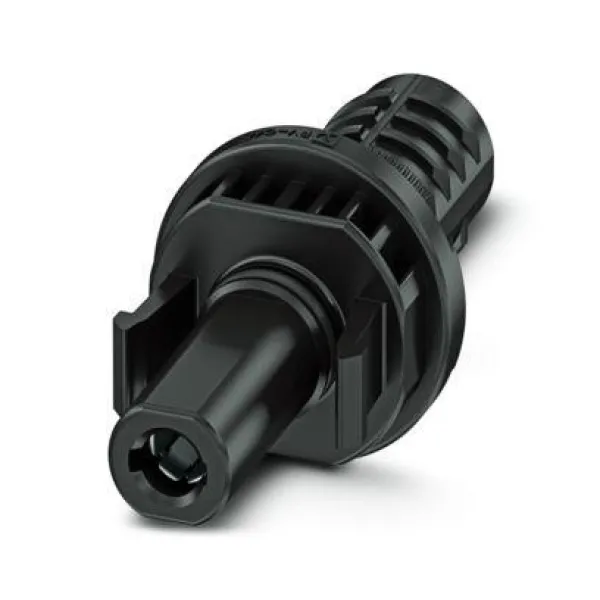

PV-FT-C2F-HSG
Photovoltaic connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, rated voltage: 1000 V DC, rated current: 40 A, Connection method: Crimp, Contact connection type: Socket
View Product

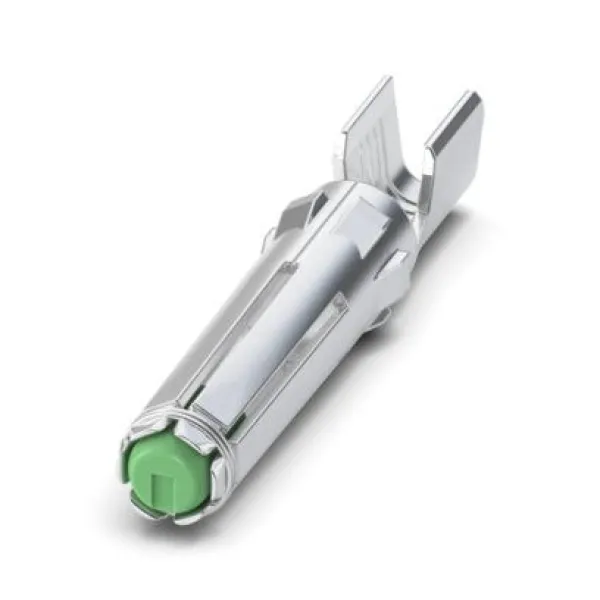

PV-FT-C3F-C-2,5-4-VPE250
Crimp contact, Range of articles: SUNCLIX, number of positions: 1, min. conductor cross section: 2.5 mm², max. conductor cross section: 4 mm², rated current: 27 A, Connection method: Crimp, Contact connection type: Socket
View Product

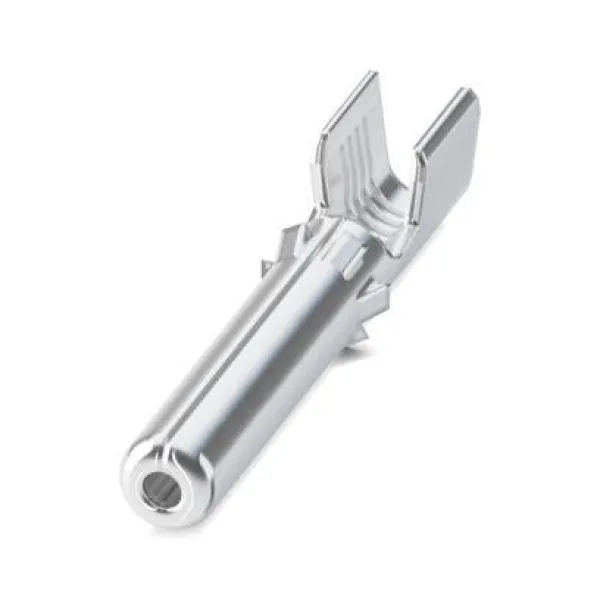

PV-FT-C3M-C-2,5-4-VPE250
Crimp contact, Range of articles: SUNCLIX, number of positions: 1, min. conductor cross section: 2.5 mm², max. conductor cross section: 4 mm², rated current: 27 A, Connection method: Crimp, Contact connection type: Pin
View Product
PV-FT-C4F-HSG
Device connector front mounting, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 2.5 mm², max. conductor cross section: 6 mm², rated voltage: 1500 V DC, rated current: 38 A, Connection method: Crimp, Contact connection type: Socket
View Product
